3300 NSv Reverse Mount Probes | 330907-05-30-10-02-05

Overview

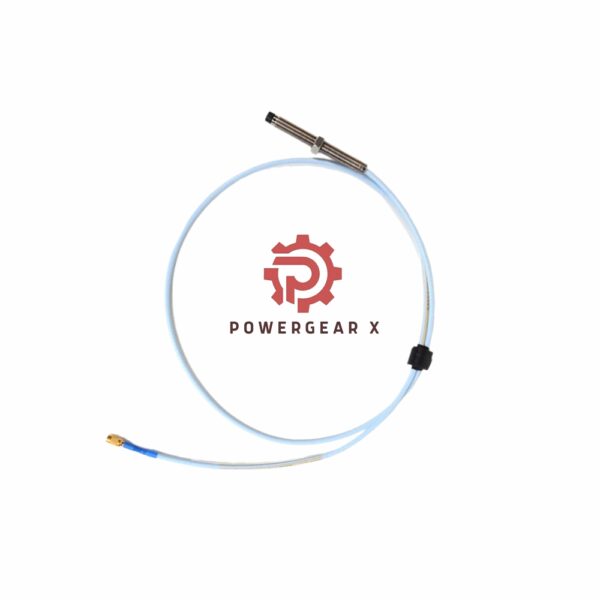

The Bently Nevada 330907-05-30-10-02-05 Reverse Mount Probe is engineered for reliability and performance across various industrial applications. With enhanced chemical resistance compared to earlier models, this probe effectively tackles challenging process environments, especially in compressor applications. Additionally, its innovative design enables precise gapping, making it a top choice for users demanding high accuracy and durability.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv
• Product Number: 330907-05-30-10-02-05
• Ordering Information:
  • Thread Options: M10X1
  • Total Length Options: 1.0 meter (39 inches)
  • Connector Option: Miniature coaxial ClickLoc connector (standard cable)
  • Agency Approval Option: Multiple approvals (05)
• DC Resistance: 4.2 ± 0.5 ohms (for 1.0 m length)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), recommended using shielded triad cable
• Linear Range: 1.5 mm (60 mils), recommended gap setting at 1.0 mm (40 mils)
• Operating Temperature Range: -52°C to +177°C (-62°F to +351°F)
• Probe Case Material: AISI 304 stainless steel
• Probe Tip Material: Polyphenylene sulfide (PPS)

Advantages

• Enhanced Chemical Resistance: The NSv variant provides superior protection against harsh chemicals compared to the 3300 RAM probe.
• Improved Performance: Offers better side-view characteristics and precise gapping capabilities for consistent accuracy.
• Durable Connectors: Gold-plated brass ClickLoc connectors ensure secure connections, preventing loosening over time.
• Robust Design: The patented TipLoc molding method creates a strong bond between the probe tip and body, enhancing longevity.

FAQ

• Q: What makes the 3300 NSv probe superior to the 3000-series probes?
  A: The NSv probe features enhanced chemical resistance and superior side-view characteristics, enabling better performance in demanding applications.
• Q: What is the recommended gap setting?
  A: The recommended gap setting for optimal performance is 1.0 mm (40 mils).
• Q: How does temperature affect the probe?
  A: Exposing the probe to temperatures below -34°C (-30°F) for extended periods may lead to premature failure of the pressure seal.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
