3300 XL 330106-05-30-05-12-00 | Reverse Mount Probes

Overview

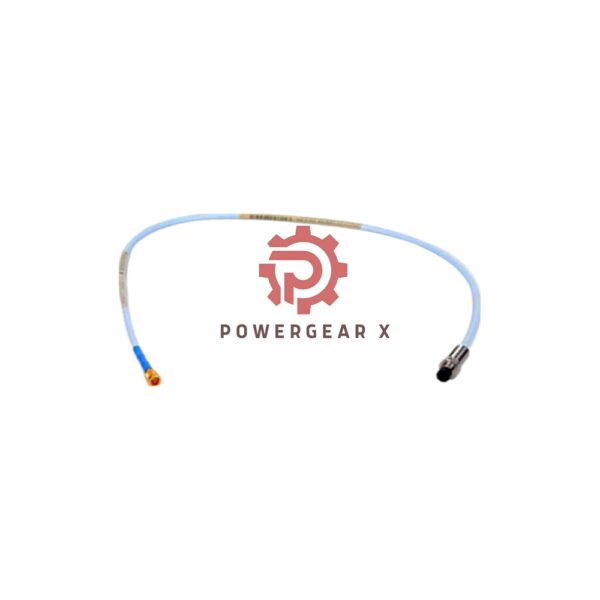

The Bently Nevada 330106-05-30-05-12-00 Reverse Mount Probe is designed for precise monitoring in industrial environments. Manufactured in the U.S.A., it offers high reliability and durability. The probe features a specialized reverse mount design with a M10 x 1 thread and comes with multiple customizable options to fit specific installation requirements.

Technical Specifications

• Brand: Bently Nevada
• Model: 330106-05-30-05-12-00
• Type: Reverse Mount Probes
• Made in: U.S.A
• Certificate of Origin (COO): Available upon request
• Thread Type: M10 x 1
• Length Options:
  • 05: 0.5 meters (1.6 feet)
• Connector:
  • 12: Miniature ClickLoc coaxial connector
  • FluidLoc cable (optional, consider carefully)
• Agency Approval Option: 00 (Not required)

Dimensions and Weight

• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.23 kg

Electrical Specifications

• Nominal Probe DC Resistance: 7.45 ± 0.50 ohms (from center conductor to outer conductor)

Mechanical Characteristics

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Maximum Case Torque:
  • Maximum: 22.6 N•m (200 in•lbf)
  • Recommended: 7.5 N•m (66 in•lbf)
• Thread Engagement Length: Maximum 15 mm for M10x1 thread

Temperature and Pressure Ratings

• Operating & Storage Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range:
    • Probe tip: -52°C to +218°C (-62°F to +425°F)
    • Probe cable & connector: -51°C to +260°C (-60°F to +500°F)
  • Note: Temperatures below –34˚C (-30˚F) may cause premature pressure seal failure.
• Pressure Rating: Designed to seal differential pressure between probe tip and case. Pressure seal material is Viton® O-ring.

FAQ

1. What is the standard length for this probe?
The standard length is 0.5 meters (1.6 feet). However, custom lengths may be available on request.

2. Do I need to choose the FluidLoc cable option?
The FluidLoc cable is optional and generally not required for most installations of the 330105 and 330106 probes due to the probe sleeve.

3. What is the temperature tolerance for the 330106 probe?
The standard temperature range for the probe is from -52°C to +177°C. The extended temperature range allows the probe to function at higher temperatures, up to +218°C for the probe tip.

4. Is the probe pressure-tested before shipment?
The 3300 XL 8 mm probes are not pressure-tested prior to shipment. If you need a pressure test, contact Bently Nevada’s custom design department.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
