3300 XL 8 mm Proximity Probe | 330140-10-20-02-CN | Bently Nevada

Overview

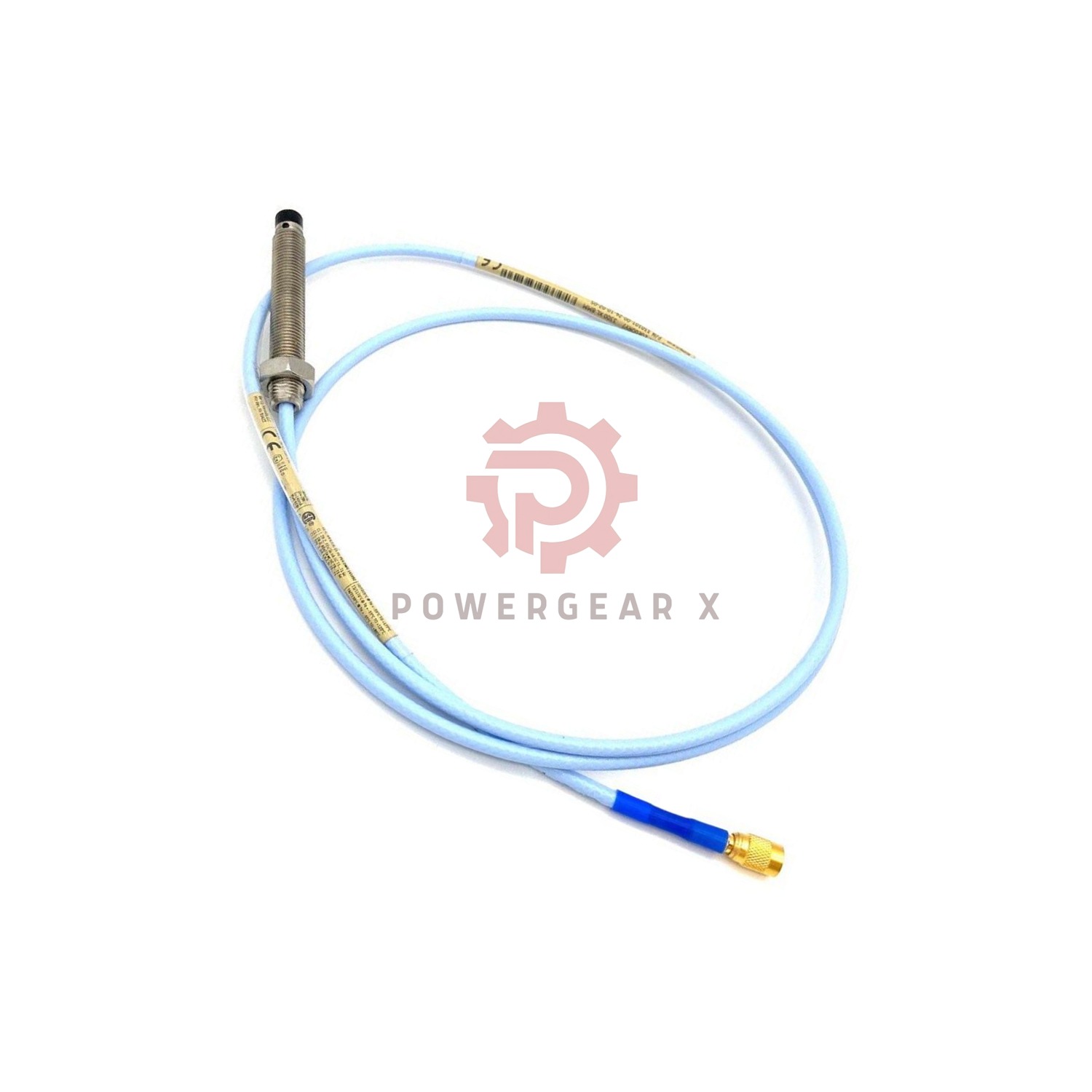

Bently Nevada offers two types of 3300 XL 8 mm probes. The first is without armor (Product No. 330140 – 10 – 20 – 02 – CN), and the second is with armor (Product No. 330141). These probes feature advanced designs, such as the patented TipLoc and CableLoc, ensuring a robust bond and strong pull – strength. They are made in the U.S.A, and a Certificate Of Origin can be added.

Technical Specification

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe
• Model Suffix Meanings:
  • For 330140 – 10 – 20 – 02 – CN: “10” means overall case length of 1.0 in, “20” is total length of 2.0 meters, “02” is a miniature coaxial ClickLoc connector, “CN” is country – specific approval.
  • For 330141: “08” is overall case length of 0.8 in, “10” is total length of 1.0 meter, “11” is a connector with protector and FluidLoc cable.
• DC Resistance: Varies with probe length (e.g., 2.0 m is 7.88 ± 0.50 Ω, 1.0 m is 7.59 ± 0.50 Ω).
• Incremental Scale Factor: Around 7.87 V/mm (200 mV/mil) with different error margins.
• Temperature Range: Standard from – 52°C to + 177°C; extended range available.
• Probe Material: Tip is PPS, case is AISI 303 or 304 stainless steel.

Contact Information

For any inquiries regarding this product, please contact [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
