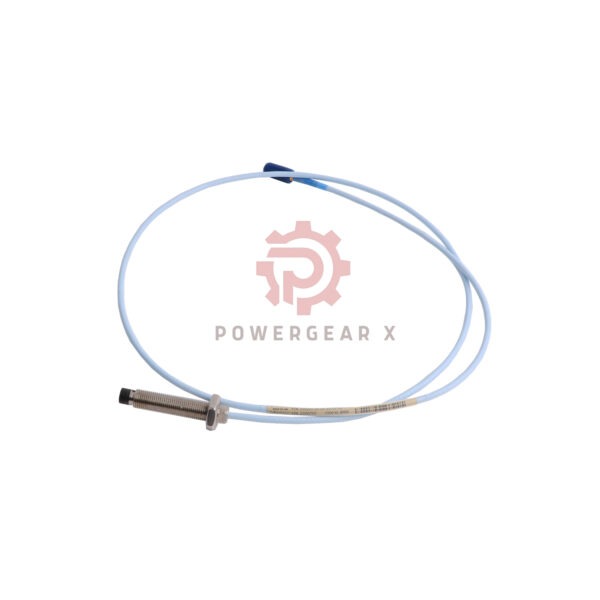

3300 XL 8 mm Proximity Probe | Bently Nevada 330140-08-90-01-05

Overview

The 330140-08-90-01-05 is a 330141 3300 XL 8 mm Probe with armor, made in the U.S.A by Bently Nevada. It features improvements over previous designs, with patented technologies ensuring better durability. An optional FluidLoc cable can prevent liquid leakage. It also comes with CSA, ATEX, and IECEx approvals, and a Certificate Of Origin can be added.

Technical Specification

• Brand: Bently Nevada
• Model: 330140-08-90-01-05
• Suffix Meanings:
  • “08” stands for an overall case length of 0.8 inches.
  • “90” represents a total length of 9.0 meters (29.5 feet).
  • “01” indicates a Miniature coaxial ClickLoc connector with a connector protector and a standard cable.
  • “05” means it has CSA, ATEX, and IECEx Approvals.
• Nominal Probe DC Resistance: For a 9.0 – meter probe, it is 9.87 ± 0.50 Ω.
• Incremental Scale Factor:
  • Standard 5 or 1 – meter System: 7.87 V/mm (200 mV/mil) ± 5% (including interchangeability error) within the 80 – mil linear range from 0°C to +45°C.
  • Standard 9 – meter System: 7.87 V/mm (200 mV/mil) ± 6.5% (including interchangeability error) within the 80 – mil linear range from 0°C to +45°C.
  • Extended Temperature Range for 5 and 9 – meter Systems: 7.87 V/mm (200 mV/mil) ± 6.5% (including interchangeability error) within the 80 – mil linear range from 0°C to +45°C.

Contact Information

For any inquiries regarding this product, please contact [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
