Product details
Overview

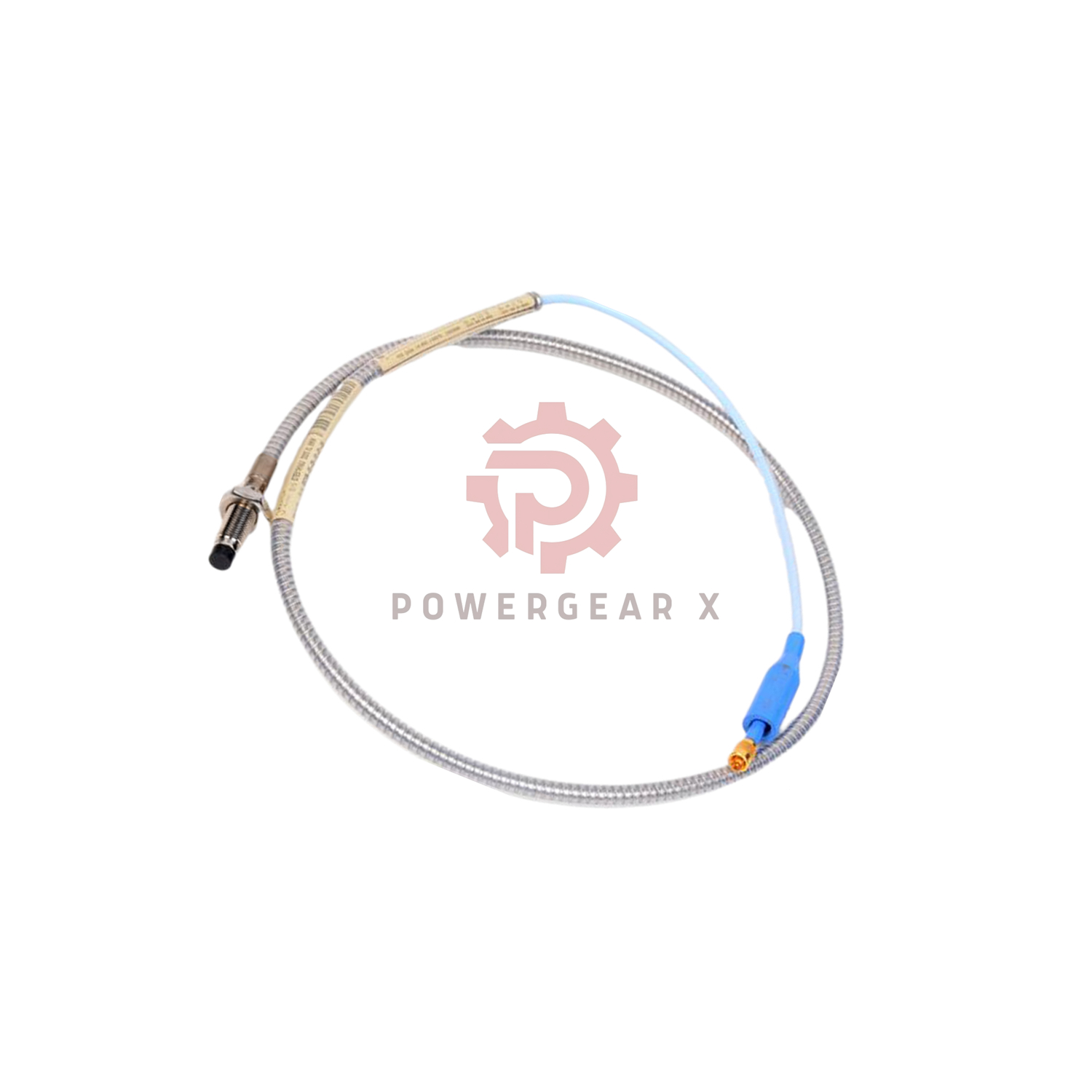

Bently Nevada manufactures two distinct 3300 XL 8 mm probes. The 330140 – 10 – 20 – 01 – CN is an unarmored probe, offering reliable performance in various industrial settings. These probes are crafted in the U.S.A, and customers have the option to add a Certificate Of Origin.
Technical Specification
- Brand: Bently Nevada
- Model: 330140 – 10 – 20 – 01 – CN
- Overall Case Length: 10 represents 1.0 inch.
- Total Length Option: 20 indicates 2.0 meters (6.6 feet).
- Connector and Cable – Type Option: 01 stands for a miniature coaxial ClickLoc connector with a connector protector and a standard cable.
- Agency Approval Option: CN denotes country – specific approval.
- DC Resistance: For a 2.0 – meter probe, the nominal DC resistance from the center conductor to the outer conductor is 7.88 Ā± 0.50 Ī©.
- Incremental Scale Factor (ISF):
- In a standard 5 or 1 – meter system, it is 7.87 V/mm (200 mV/mil) Ā± 5% including interchangeability error within the specified measurement range and temperature.
- In a standard 9 – meter system and extended temperature range (ETR) for 5 and 9 – meter systems, it is 7.87 V/mm (200 mV/mil) Ā± 6.5% under similar measurement conditions
Contact Information
For any inquiries regarding this product, please contact [email protected]
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
