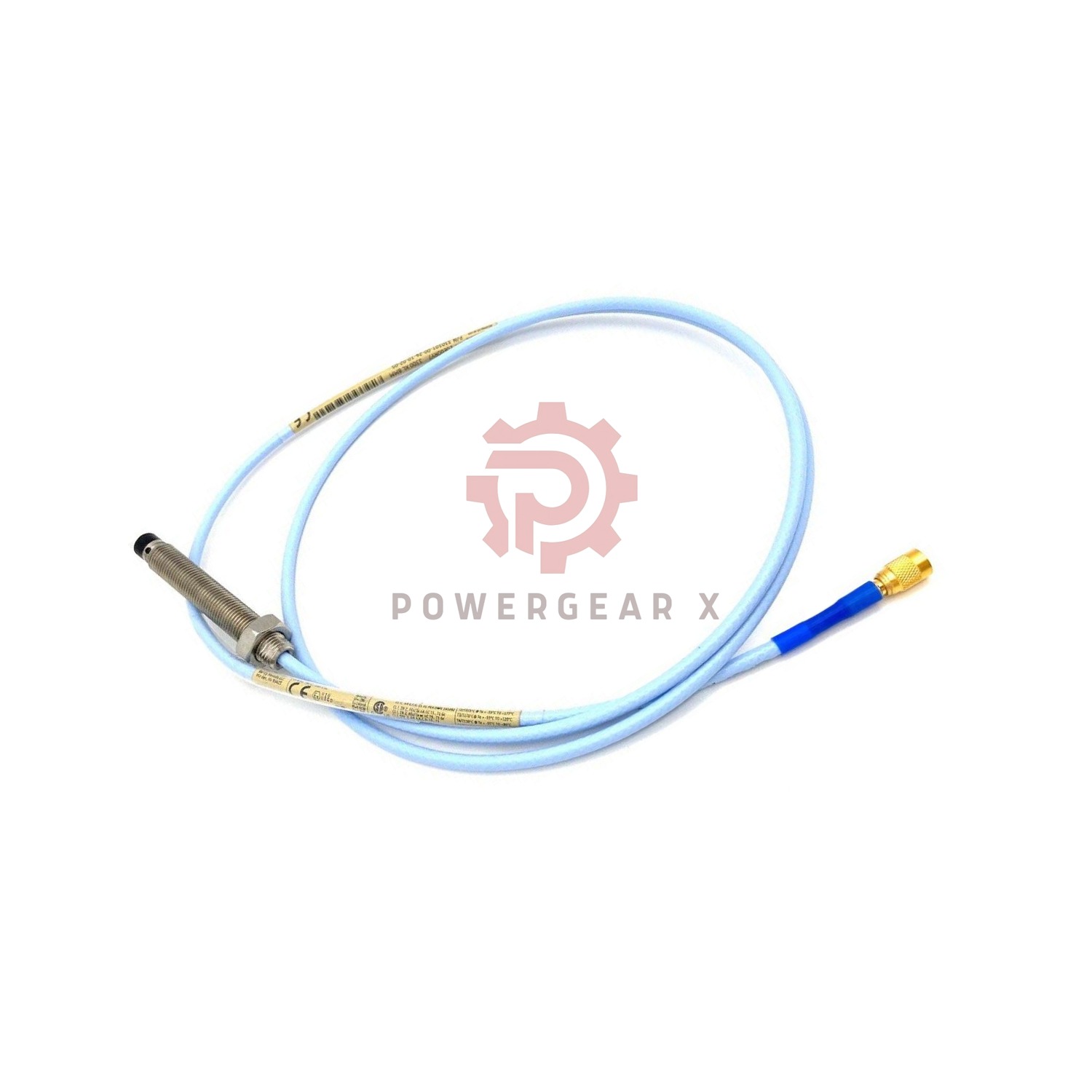

3300 XL 8 mm Proximity Probe | Bently Nevada | 330140-10-20-12-CN

Overview

Bently Nevada offers two types of 3300 XL 8 mm probes. The 330140 – 10 – 20 – 12 – CN is a non – armored probe, while the 330141 comes with armor. Both are made in the U.S.A, and a Certificate Of Origin can be added. These probes feature advanced technologies for enhanced performance and durability.

Technical Specification

• 330140 – 10 – 20 – 12 – CN (Without Armor)
• Brand: Bently Nevada
  Model: 330140 – 10 – 20 – 12 – CN
• Overall Case Length: 1.0 inch
  Total Length: 2.0 meters (6.6 feet)
  Connector and Cable: Miniature coaxial ClickLoc connector, FluidLoc cable
  Agency Approval: Country – specific (CN)
• DC Resistance: For a 2.0 – meter probe, it is 7.88 ± 0.50 Ω
  Incremental Scale Factor (ISF):
• Standard 5 or 1 – meter system: 7.87 V/mm (200 mV/mil) ± 5%
  Standard 9 – meter system and ETR for 5 and 9 – meter systems: 7.87 V/mm (200 mV/mil) ± 6.5%
• Deviation from Best Fit Straight Line (DSL):
• Standard 5 or 1 – meter system: Less than ±0.025 mm (±1 mil) at 0°C – 45°C
  Standard 9 – meter system and ETR 5 and 9 – meter systems: Less than ±0.038 mm (±1.5 mil) at 0°C – 45°C

Contact Information

For any inquiries regarding this product, please contact [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
