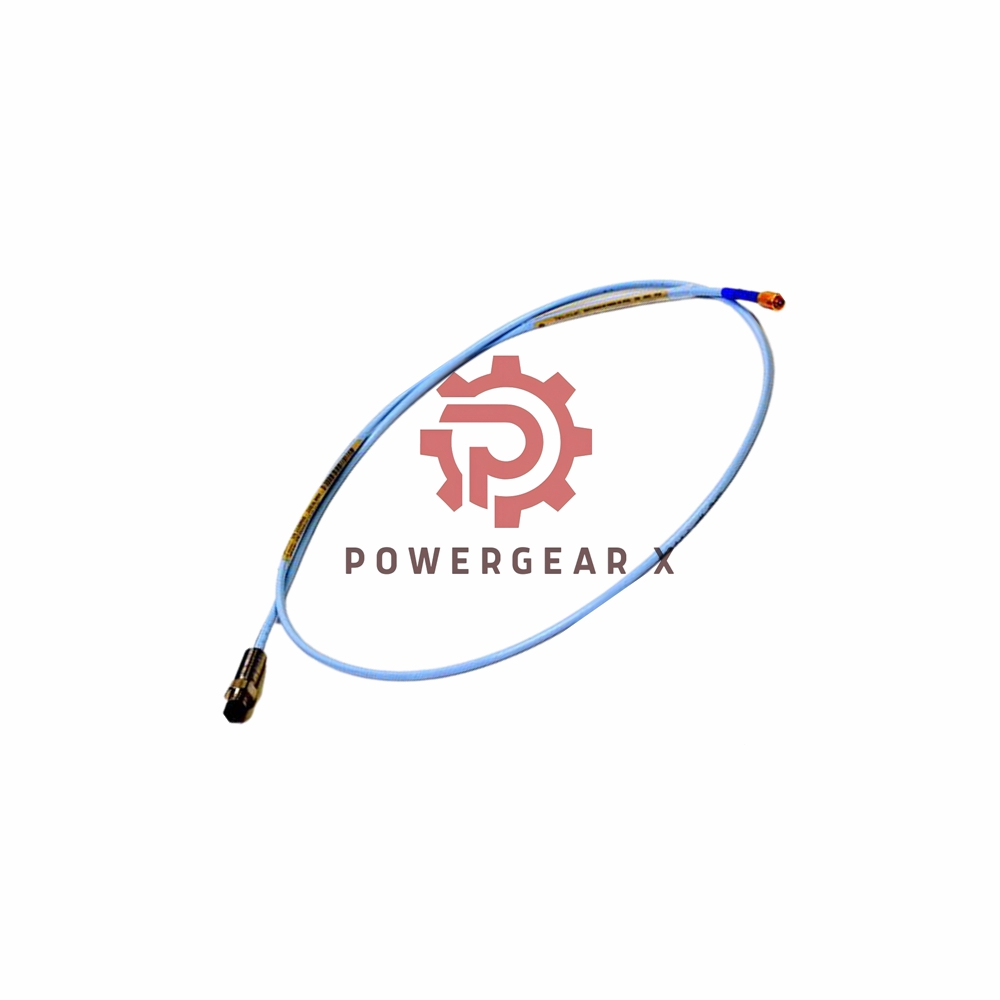

3300 XL 8 mm Reverse Mount Probe 330105-02-12-10-12-00

Overview

The Bently Nevada 3300 XL 8 mm Reverse Mount Probes are essential components in vibration monitoring systems. Manufactured in the U.S.A, these probes are renowned for their reliability and durability in industrial applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Reverse Mount Probes
• Product Number: 330105-02-12-10-02-00
• Country of Origin (COO): Made in U.S.A (Certificate of Origin available upon request)
• Total Length Option: 10 = 1.0 meter (3.3 feet)
• Connector Option: 02 = Miniature ClickLoc™ coaxial connector
• Agency Approval Option: 00 = Not required
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 kg
• Maximum Length of Thread Engagement: 3/8-24, 0.563 inches

Temperature Range

• Standard Probe: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range Probe:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)

Performance Characteristics

• Operating conditions apply between +18°C and +27°C (+64°F to +80°F) at altitudes up to 2000 meters.
• Systems must consist solely of 3300 XL 8 mm components for specified accuracy and interchangeability.
• Accuracy specifications are valid for systems calibrated using an AISI 4140 steel target with a probe gapped at 1.27 mm (50 mils).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
