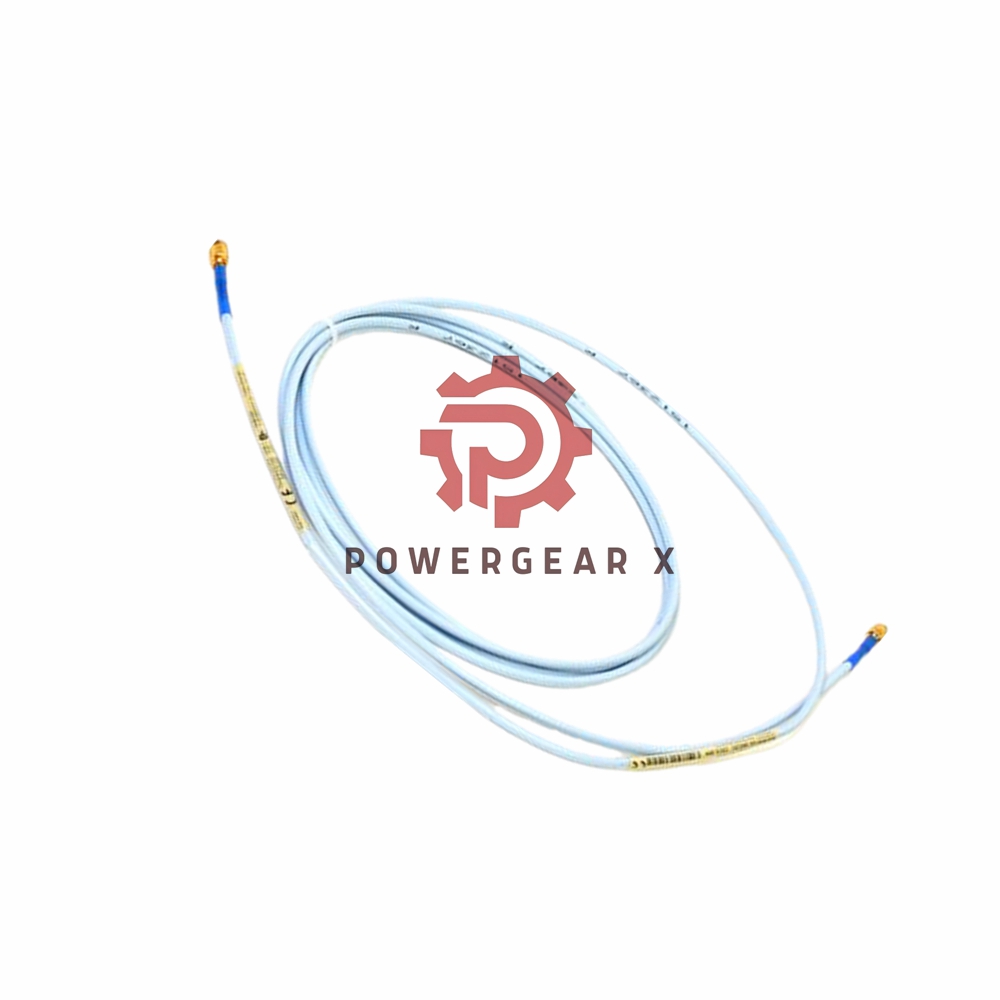

3300 XL Extension Cable 330130-030-10-05 | Bently Nevada

Overview:

The 330130-030-10-05 3300 XL Extension Cable, designed for Bently Nevada’s 3300 XL Proximitor Sensors, delivers exceptional durability and reliability in challenging industrial environments. It features a patented CableLoc design, ensuring a secure attachment with a 75 lbf pull strength, and uses a TipLoc molding method for better probe tip-to-body bonding.

Key Features:

• Cable Length: 3.0 meters (9.8 feet)
• Connector Type: Two 3300 XL gold “click” type connectors (finger tight) or one non-XL stainless steel and one 3300 XL connector (finger tight plus 1/8 turn using pliers).
• Cable Option: FluidLoc cable to prevent oil and other fluids from leaking.
• Agency Approval Options: CSA, ATEX, IECEx approvals for safety compliance.
• Weight: 0.102 Kg (0.225 lbs).
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Temperature Range: Operates in temperatures from -51°C to +177°C (-60°F to +351°F).
• Power Supply: Requires -17.5 Vdc to -26 Vdc (depending on installation).

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 XL Extension Cable (330130-030-10-05)
• Suffix: 030 – 3.0 meters cable length, 10 – FluidLoc cable, 05 – CSA, ATEX, IECEx approvals.
• Connector Materials: Gold-plated brass or gold-plated beryllium copper.
• Proximitor Sensor Material: A308 aluminum.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) with recommended shielded triad cable.
• Linear Range: 0.25 to 2.3 mm (10 to 90 mils), with a maximum voltage range of -1 to -17 Vdc.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft).
• Maximum Field Wiring Length: 305 meters (1,000 feet).
• Output Resistance: 50 Ω.

FAQs:

1. What is the operating temperature range of the Bently Nevada 3300 XL Extension Cable?
   The cable can operate in temperatures from -51°C to +177°C (-60°F to +351°F).
2. How long is the 3300 XL Extension Cable?
   The extension cable length is 3.0 meters (9.8 feet).
3. What approvals does the 3300 XL Extension Cable have?
   It features CSA, ATEX, and IECEx approvals for compliance with safety standards.
4. What type of connector does this extension cable use?
   The cable uses two 3300 XL gold “click” type connectors, tightened by hand, or a combination of one non-XL and one 3300 XL connector, tightened with pliers.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
