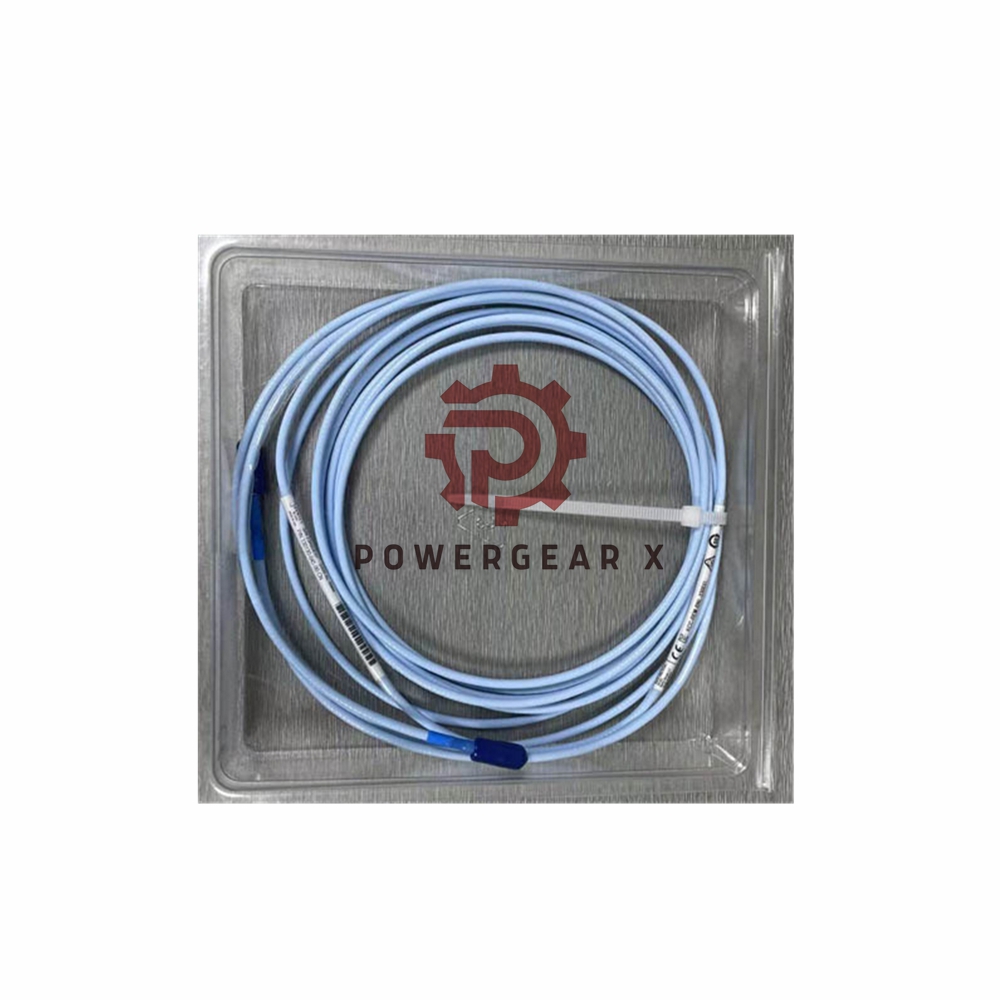

3300 XL Extension Cable 330130-045-01-CN Bently Nevada

Overview

The Bently Nevada 330130-045-01-CN 3300 XL Extension Cable, part of the renowned 3300 XL series, is engineered for precise vibration monitoring applications. Designed with superior durability, this cable incorporates the patented CableLoc and TipLoc technologies for enhanced pull strength and reliability. An optional FluidLoc feature prevents oil leakage, ensuring optimal machine performance and longevity. This cable is made in the U.S.A and is compliant with various country-specific agency approvals, denoted by the “CN” suffix.

Key Features

• Brand/Model: Bently Nevada 330130-045-01-CN
• Cable Length: 4.5 meters (14.8 feet)
• Cable Type: Armored with a robust design for high-stress environments
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical, ensuring accurate signal transmission
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F), suitable for extreme conditions
• Weight: 0.503 kg

Suffix Details

• 045: Cable length (4.5 meters or 14.8 feet)
• 01: Armored cable option for enhanced protection
• CN: Approvals tailored to specific countries

Technical Specifications

1. Extension Cable Capacitance:
   • Typical: 69.9 pF/m (21.3 pF/ft).
2. Linear Range:
   • Operates from 0.25 mm to 2.3 mm (10 to 90 mils) with a linear range starting at -1 Vdc.
3. Voltage Requirements:
   • Requires -17.5 Vdc to -26 Vdc for optimal operation.
4. Field Wiring:
   • Accepts 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad cables, supporting lengths up to 305 meters (1,000 feet).

Frequently Asked Questions (FAQ)

1. What makes the 330130-045-01-CN unique?
   • The armored cable with TipLoc and CableLoc technologies offers superior durability and reliability in harsh conditions.
2. Can the cable be used in high-temperature environments?
   • Yes, it supports temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).
3. What is the significance of the FluidLoc option?
   • It prevents oil and liquid leakage through the cable’s interior, enhancing system reliability.
4. What are the power requirements?
   • The cable operates on -17.5 Vdc to -26 Vdc with a maximum current consumption of 12 mA.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
