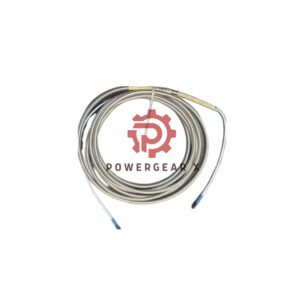

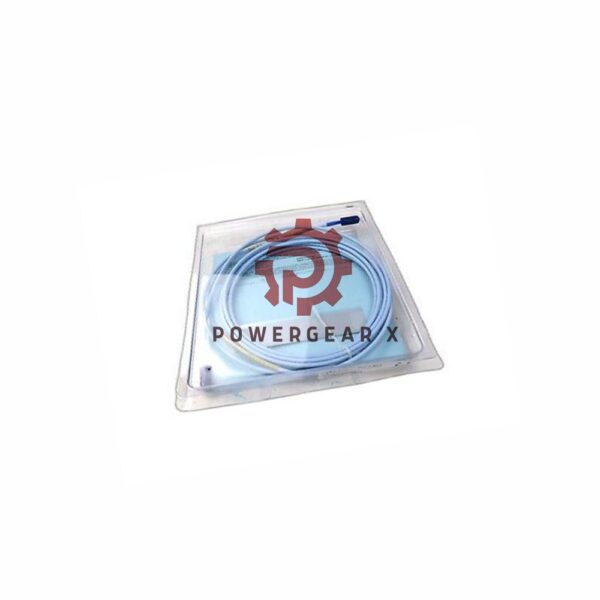

3300 XL Extension Cable Bently Nevada 330130-045-00-05

Overview

The Bently Nevada 3300 XL Extension Cable (Part No. 330130-045-00-05) is designed to provide enhanced flexibility and durability for industrial applications. This high-performance cable is made in the USA and features superior engineering, incorporating robust CableLoc and TipLoc designs for secure connections. Additionally, the cable is available with an optional FluidLoc configuration, which prevents leakage of oil or other fluids from the machine through the cable’s interior. The extension cable is certified with CSA, ATEX, and IECEx approvals, making it suitable for use in hazardous environments.

This extension cable, offering a length of 4.5 meters (14.8 feet), is a perfect complement to the 3300 XL 8 mm Proximity Sensor and other 3300 XL components.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Extension Cable
• Part Number: 330130-045-00-05
• Length Option: 045 (4.5 meters / 14.8 feet)
• Cable Type: Standard cable with CSA, ATEX, IECEx agency approvals.
• Temperature Range:
  • Operating: -51 °C to +177 °C (-60 °F to +351 °F)
  • Storage: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.503 Kg
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring:
  • Wire Gauge: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Cable Type: 3-conductor shielded triad cable
  • Maximum Length: 305 meters (1,000 feet)

Power and Sensitivity

• Power Supply: -17.5 Vdc to -26 Vdc (when connected with non-incendive circuit), -23 Vdc to -26 Vdc with barriers
• Maximum Consumption: 12 mA
• Sensitivity: Less than 2 mV change in output per volt change in input voltage.
• Output Resistance: 50 Ω

Linear Range and Field Wiring

• Linear Range:
  • 2 mm (80 mils), starts at approximately 0.25 mm (10 mils) from the target
  • Range from 0.25 to 2.3 mm (10 to 90 mils), with output voltage between -1 Vdc to -17 Vdc.

FAQs

1. What is the maximum cable length for the 3300 XL extension cable?
   The maximum cable length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.
2. Can the extension cable be used with other Bently Nevada proximity sensors?
   Yes, the 3300 XL Extension Cable is designed to work with 3300 XL 8 mm probes and proximity sensors.
3. What approvals does the 3300 XL Extension Cable have?
   It has CSA, ATEX, and IECEx certifications, making it suitable for use in hazardous areas.
4. What is the typical capacitance of the extension cable?
   The extension cable has a typical capacitance of 69.9 pF/m (21.3 pF/ft).
5. What is the maximum temperature range for this extension cable?
   The extension cable operates in temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
