3300 XL Extension Cable Bently Nevada 330130-045-01-00

Overview

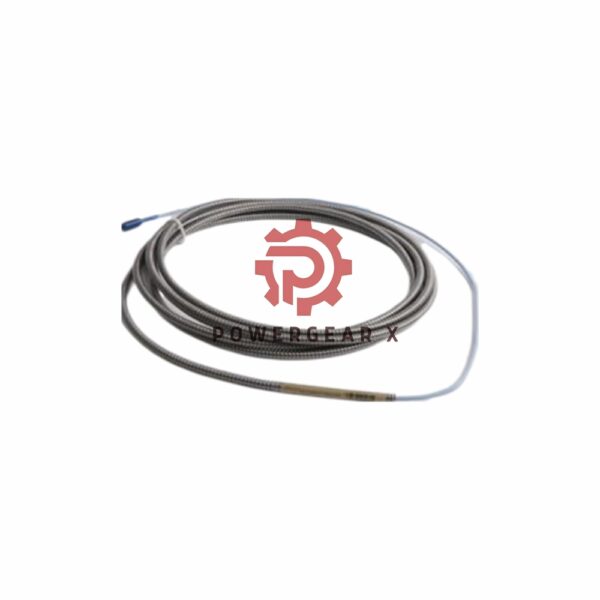

The Bently Nevada 3300 XL Extension Cable, part number 330130-045-01-00, is designed to enhance the performance of the 3300 XL Proximitor Sensors. Manufactured in the USA, this extension cable is engineered with robust features like the TipLoc molding method and the CableLoc design, ensuring secure connections and high durability. The armored cable construction (denoted by the “01” code) makes it ideal for demanding industrial environments. The cable has an operating temperature range from -51°C to +177°C (-60°F to +351°F), making it suitable for extreme conditions.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 XL Extension Cable
• Part Number: 330130-045-01-00
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Cable Type: Armored (01)
• Length: 4.5 meters (14.8 feet)
• Weight: 0.948 kg
• Power Supply: Requires -17.5 Vdc to -26 Vdc
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), recommended 3-conductor shielded triad cable
• Linear Range: 2 mm (80 mils), beginning from approximately 0.25 mm (10 mils) from target

FAQ:

1. What is the maximum length of the extension cable?
   • The maximum length of the extension cable is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.
2. Is the 3300 XL extension cable suitable for high temperatures?
   • Yes, it can operate in temperatures ranging from -51°C to +177°C (-60°F to +351°F), making it suitable for extreme conditions.
3. What does the “01” in the part number signify?
   • The “01” indicates the armored cable construction, which provides enhanced protection.
4. Can I use this extension cable with other probes?
   • The specifications apply to 3300 XL 8 mm probes and extension cables. For accuracy and interchangeability, ensure the system consists solely of 3300 XL components.
5. What is the power supply requirement for this cable?
   • It requires a power supply of -17.5 Vdc to -26 Vdc, and the operation at a more positive voltage than -23.5 Vdc could reduce the linear range.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
