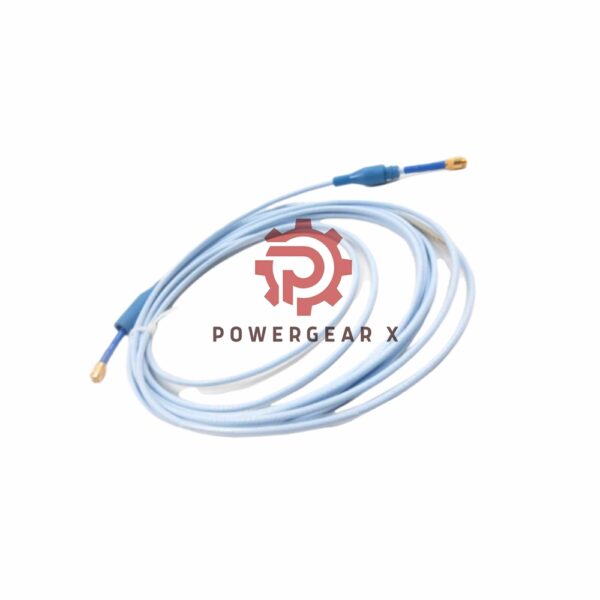

3300 XL Extension Cable Bently Nevada 330130-045-02-00

Overview

The Bently Nevada 330130-045-02-00, part of the 3300 XL Series, is a high-performance extension cable designed for compatibility with the 3300 XL 8 mm Proximitor Sensor and probe system. Built with patented CableLoc technology, it ensures a pull strength of 330 N (75 lbf) for secure connectivity. This cable offers superior reliability and durability, with optional FluidLoc features to prevent fluid leaks through the cable.

Technical Specifications

Brand & Model

• Manufacturer: Bently Nevada
• Product Name: 3300 XL Extension Cable
• Part Number: 330130-045-02-00

Suffix Details

• 045: Cable Length: 4.5 meters (14.8 feet)
• 02: Connector and Protector Type: Standard cable with connector protectors
• 00: Agency Approval: Not required

Electrical Specifications

• Power Supply: -17.5 Vdc to -26 Vdc, 12 mA max consumption
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV output change per volt input change

Cable Performance

• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring: Supports 0.2 to 1.5 mm² (16 to 24 AWG); max 305 meters (1,000 feet) field wiring length
• Linear Range: 2 mm (80 mils), starting at 0.25 mm (10 mils) from the target

Environmental Conditions

• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Storage Temperature: Same as operating range
• Weight: 0.948 kg

Features

1. TipLoc Design: Ensures robust bonding between probe tip and body.
2. CableLoc Technology: Offers superior pull strength and secure attachment.
3. Optional FluidLoc: Prevents liquid leakage through the cable interior.
4. System Compatibility: Designed specifically for Bently Nevada 3300 XL systems with AISI 4140 steel targets for maximum accuracy.

FAQ

1. What does the part number suffix signify?

• “045” indicates a 4.5-meter cable length.
• “02” specifies a standard cable with connector protectors.
• “00” confirms that no agency approval is required.

2. Is the FluidLoc feature included in this model?

• No, the FluidLoc feature is optional and not included in the standard 330130-045-02-00 model.

3. What is the maximum recommended field wiring length?

• The maximum field wiring length is 305 meters (1,000 feet).

4. Can the cable operate in extreme temperatures?

• Yes, it supports temperatures ranging from -51°C to +177°C.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
