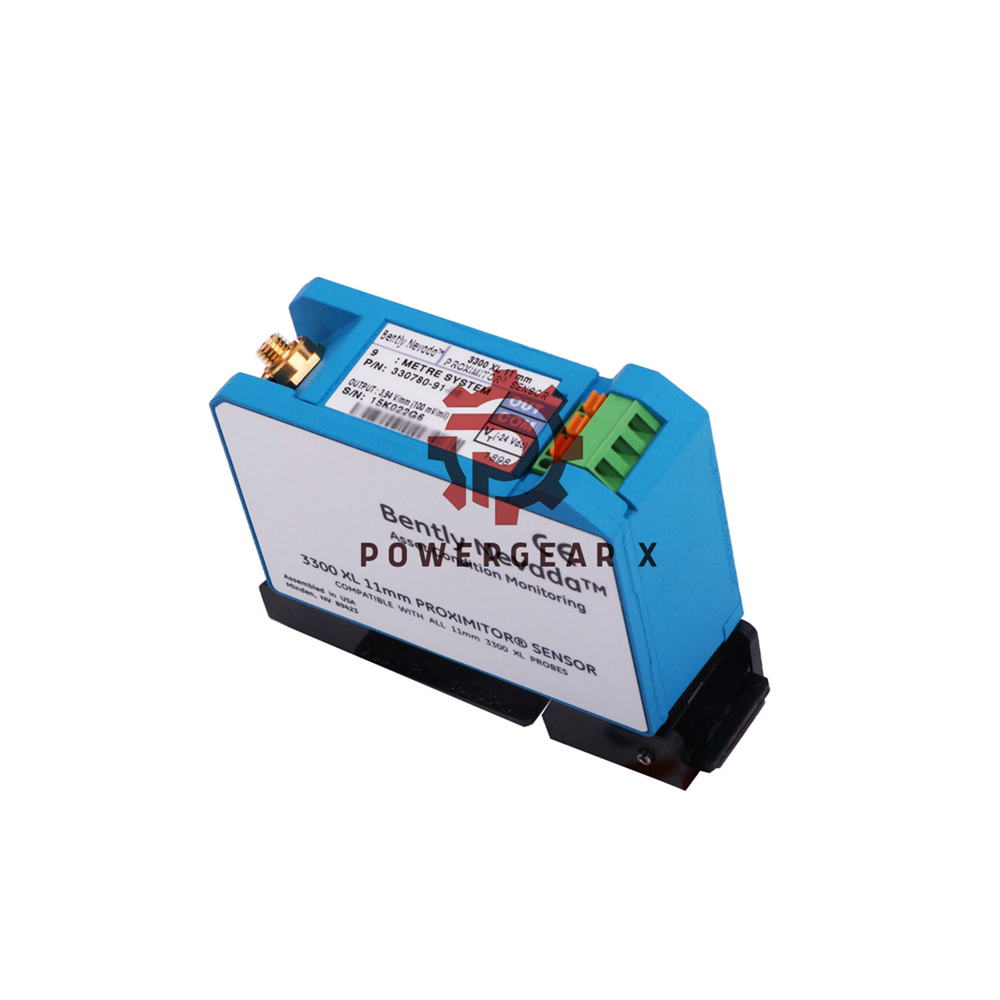

3300 XL Proximitor Sensor | Bently Nevada 330780-92-CN

Overview

The Bently Nevada 3300 XL 11 mm Proximitor Sensor (Product No. 330780-92-CN) is designed for precise non-contact displacement measurements, ideal for use in harsh industrial environments. This sensor features a compact design, making it versatile for both high-density DIN-rail installations and traditional panel mounting configurations. The advanced RFI/EMI immunity ensures that the system is protected from interference caused by high-frequency radio signals, while still meeting European CE mark approvals. The sensor’s robust performance and ease of installation make it an ideal choice for demanding applications requiring high reliability and performance.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11 mm Proximitor Sensor
• Product No.: 330780-92-CN
• Size (HxWxD): 6.35 cm x 6.12 cm x 8.13 cm (2.5″ x 2.4″ x 3.2″)
• Material: A380 Aluminum
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Humidity Range: 100% condensing, non-submersible (with connectors protected)
• Output Resistance: 50 Ω

Power and Input Requirements:

• Power Supply: -17.5 Vdc to -26 Vdc without barriers; -23 Vdc to -26 Vdc with barriers
• Power Consumption: Maximum 12 mA
• Input: Accepts 3300 XL 11 mm Proximity Probe and Extension Cable

Performance:

• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Calibration:

• Factory calibrated to AISI 4140 steel, with the option for calibration to other target materials upon request.

Ordering Information

• Model: 3300 XL 11 mm Proximitor Sensor
• Part Number: 330780-92-CN
• System Length: 9 meters (29.5 feet) with extension cable (no mounting hardware)
• Agency approval option :CN Country Specific

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
