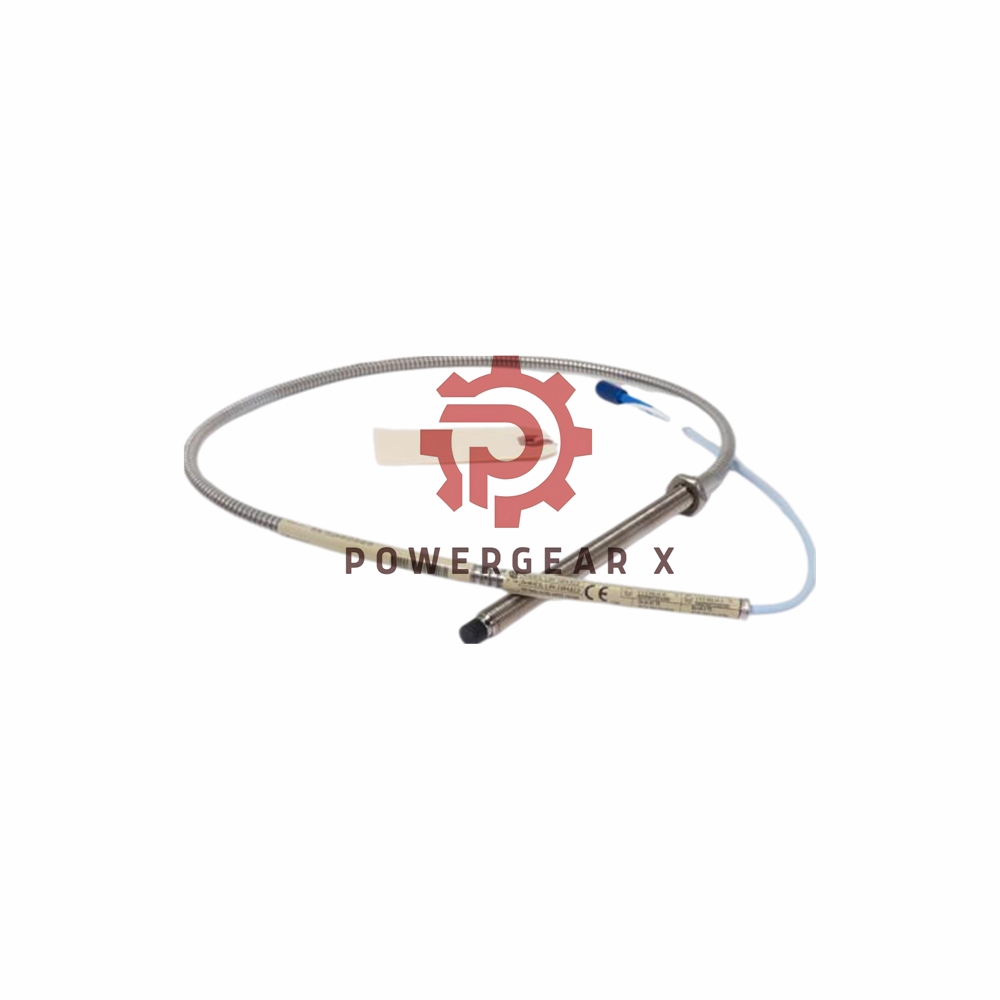

3300 XL Proximity Probe 330104-00-04-10-02-05 Bently Nevada

Overview

• Manufacturer: Bently Nevada
• Product No.: 330104-00-04-10-02-05
• Product Type: 3300 XL 8 mm Proximity Probe
• Origin: Made in the U.S.A.
• Certificate of Origin (COO): Available on request
• Weight: 0.323 kg

Technical Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Pressure: Sealed differential pressure with Viton® O-ring (not pressure-tested before shipment)
• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range: Probe tip: -52°C to +218°C (-62°F to +425°F); Cable and connector: -51°C to +260°C (-60°F to +500°F)
• Humidity Tolerance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days (according to IEC standard 68 2 3)
• Connector Type: Miniature coaxial ClickLocTM connector, standard cable
• Approval: CSA, ATEX, IECEx approved

330104-00-04-10-02-05 Suffix Explanation:

• 00: Unthreaded Length (0 mm)
• 04: Overall Case Length (40 mm)
• 10: Total Length (1.0 metre / 3.3 feet)
• 02: Connector and Cable Type (Miniature coaxial ClickLoc™ connector, standard cable)
• 05: Agency Approval (CSA, ATEX, IECEx approvals)

FAQ

1. What is the temperature tolerance of the 3300 XL 8 mm probe?
   • The standard probe can tolerate temperatures between -52°C to +177°C. For extended temperature ranges, the probe tip can operate from -52°C to +218°C.
2. What types of approvals does the Bently Nevada 3300 XL 8 mm probe have?
   • It is approved by CSA, ATEX, and IECEx, ensuring its compatibility with hazardous environments.
3. What is the purpose of the FluidLoc option?
   • The FluidLoc option prevents oil and other liquids from leaking out of machinery through the probe’s cable interior, offering additional protection for sensitive environments.
4. Can I use the probe at higher voltages than specified?
   • Operation above -23.5 Vdc may result in reduced linear range, so it is recommended to stay within the specified voltage limits.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
