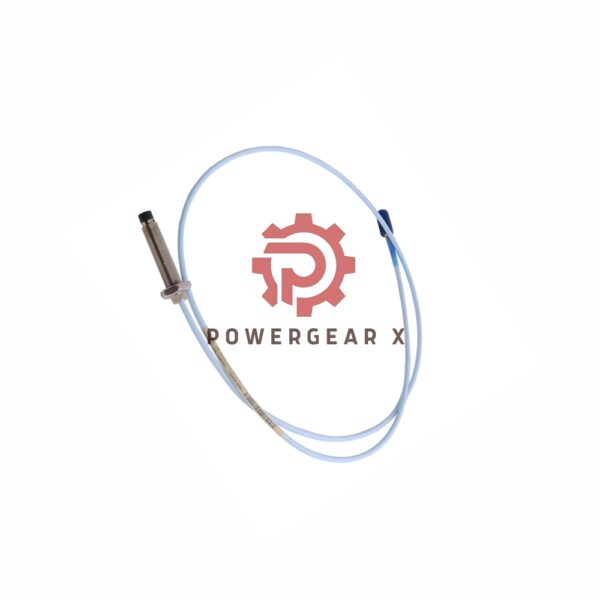

3300 XL Proximity Probe 330104-00-06-05-01-05 Bently Nevada

Overview:

The Bently Nevada 330104-00-06-05-01-05 3300 XL 8 mm Proximity Probe offers robust design and excellent performance for monitoring machinery vibration. This model features advanced sealing, improved bonding, and a durable construction suited for industrial applications. It comes with a 12-month factory warranty and is supplied in new, original factory packing.

Key Features:

• Model: 3300 XL 8 mm Proximity Probe
• Condition: New & Original in Factory Packing
• Warranty: 12 Months from Factory
• Material:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 Kg
• Cable: Miniature coaxial ClickLoc connector with connector protector, standard cable
• Approval: CSA, ATEX, IECEx

Technical Specifications:

• Part Number: 330104-00-06-05-01-05
• Suffix Code:
  • 00: Unthreaded Length Option (0 mm)
  • 06: Overall Case Length (60 mm)
  • 50: Total Length (5.0 meters / 16.4 feet)
  • 01: Connector and Cable Type Option (Miniature coaxial ClickLoc connector)
  • 05: Agency Approval (CSA, ATEX, IECEx)
• Operating Temperature:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Range Probe: -52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to +500°F) for the probe cable and connector
• Power Supply: Requires -17.5 Vdc to -26 Vdc at a maximum of 12 mA current
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change per volt change in input voltage
• Humidity Resistance: Tested to 93% humidity with less than a 3% change in Average Scale Factor (ASF) for up to 56 days
• Pressure Seal: Designed to seal differential pressure between the probe tip and case, with Viton® O-ring sealing material

FAQ:

1. What is the range of this proximity probe?
   • The range varies depending on the system setup, but it works with a 1.27 mm (50 mils) gap for optimal performance.
2. Can this probe be used in harsh environments?
   • Yes, the probe is designed to withstand extreme temperatures and harsh industrial conditions.
3. How does the probe seal against pressure?
   • The probe utilizes a Viton® O-ring to seal the differential pressure between the probe tip and the case.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
