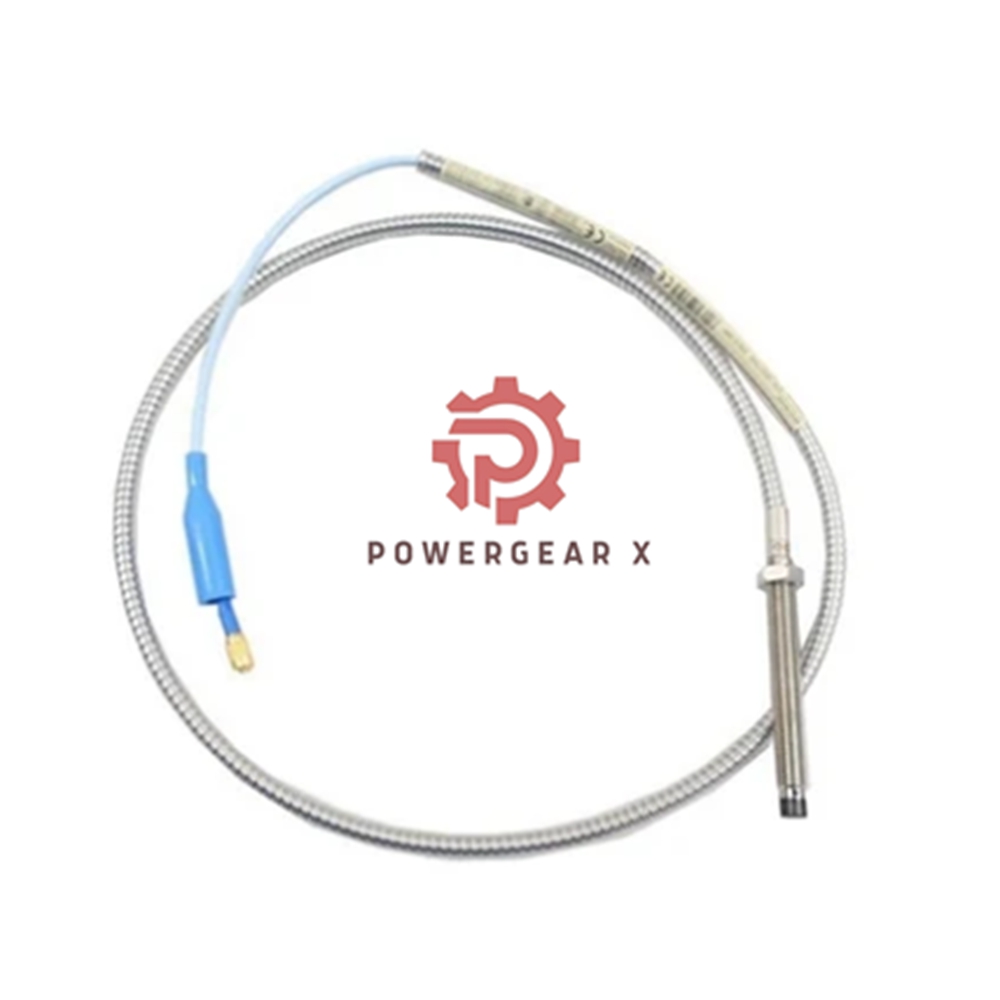

3300 XL Proximity Probe 330104-00-08-10-01-00 Bently Nevada

Overview

The Bently Nevada 330104-00-08-10-01-00 3300 XL 8 mm Proximity Probes are advanced sensors designed for precision monitoring in industrial applications. Originating from the USA, these probes incorporate state-of-the-art technology to ensure reliable performance and durability.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• Product Number: 330104-00-08-10-01-00
  • Manufacturer’s Options:
    • Unthreaded Length: 00 = 0 mm
    • Overall Case Length: 08 = 80 mm
    • Total Length: 10 = 1.0 meter (3.3 feet)
    • Connector and Cable Type: 01 = Miniature coaxial ClickLoc connector with connector protector, standard cable
    • Agency Approval: 00 = Not required
• Materials:
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 kg
• Probe Pressure: Seals differential pressure between probe tip and case, utilizing a Viton® O-ring.
• Temperature Range:
  • Standard Probes: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range: Probe Tip: -52°C to +218°C (-62°F to +425°F); Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)
• Power Requirements:
  • -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
  • Sensitivity: < 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω

Applications

The 3300 XL probes are ideal for vibration monitoring in rotating machinery, ensuring operational reliability in critical environments. They are widely used in industries requiring accurate condition monitoring, providing timely insights into equipment performance and health.

Frequently Asked Questions (FAQ)

1. What is the significance of the probe materials?
   The use of AISI 303 or 304 stainless steel enhances durability against environmental factors.
2. How does the sealing work?
   The Viton® O-ring acts as a seal against differential pressure, ensuring reliable operation.
3. What environments are the probes suitable for?
   They function effectively within a temperature range of -52°C to +177°C (-62°F to +350°F) under various humidity levels.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
