3300 XL Proximity Probe 330104-00-08-50-02-00 Bently Nevada

Overview

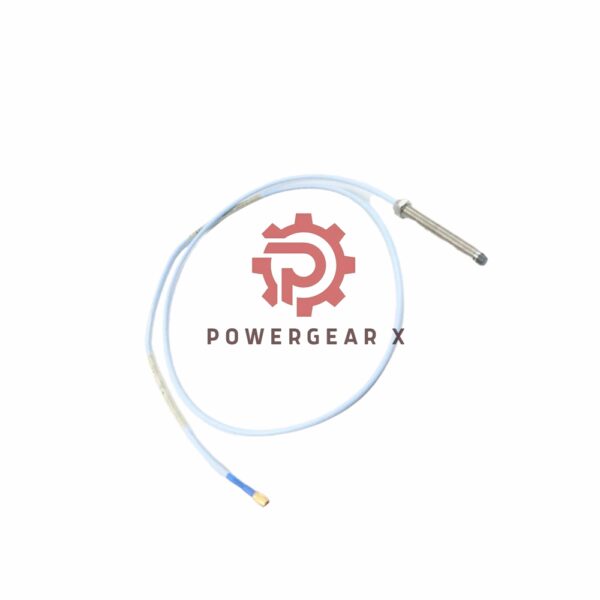

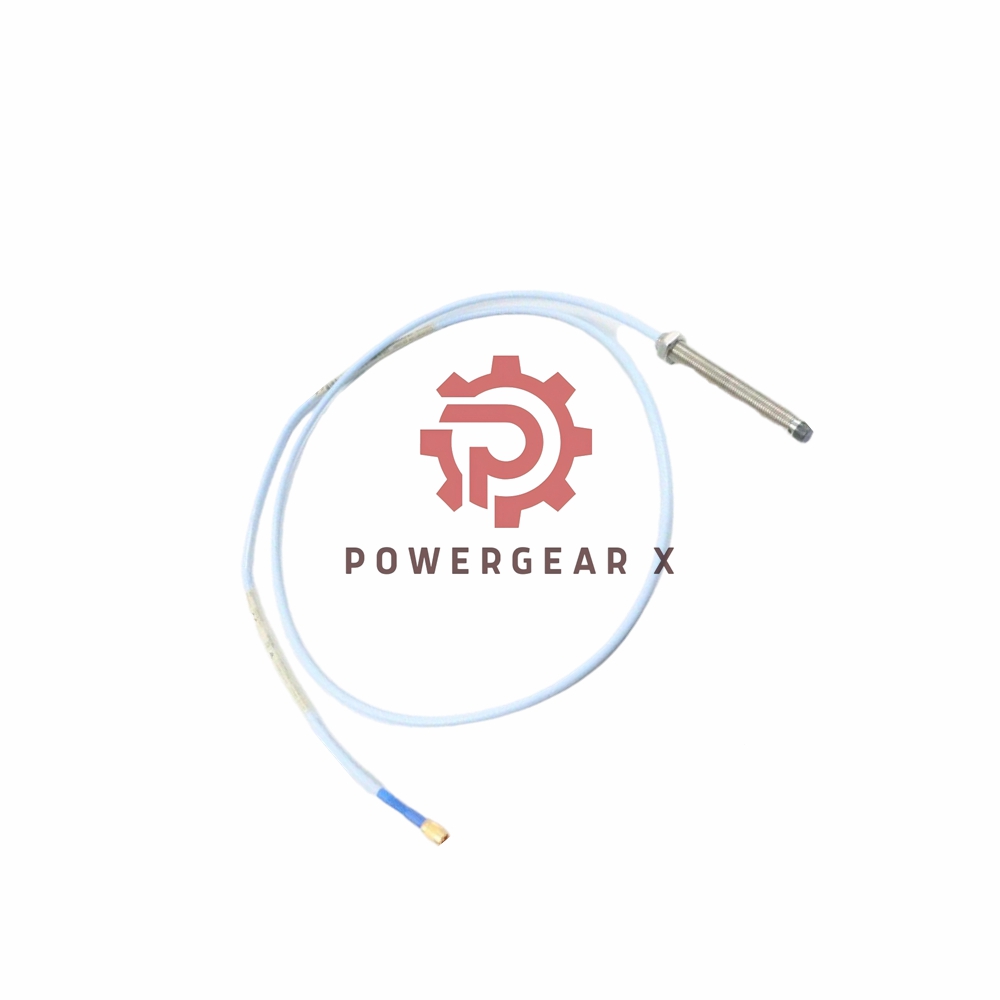

The Bently Nevada 3300 XL 8 mm Proximity Probe, part number 330104-00-08-50-02-00, is engineered to deliver reliable performance in vibration monitoring and shaft displacement applications. Its robust design features enhanced sealing, durability, and optional fluid leakage prevention.

330104-00-08-50-02-00 Model and Suffix Codes

• Model: 330104 – 3300 XL 8 mm Proximity Probes
• Unthreaded Length Option: 00 – 0 mm
• Overall Case Length Option: 08 – 80 mm
• Total Length Option: 50 – 5.0 meters (16.4 feet)
• Connector and Cable Type Option: 02 – Miniature coaxial ClickLoc connector with standard cable
• Agency Approval Option: 00 – Not required

Technical Specifications

General

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• Weight: 0.323 kg

Construction Materials

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)

Electrical Specifications

• Power Requirements:
  • Voltage: -17.5 Vdc to -26 Vdc
  • Consumption: 12 mA maximum
  • Resistance: 50 Ω
• Supply Sensitivity: < 2 mV change per volt input variation
• Output Resistance: 50 Ω

Temperature Range

• Standard Probe: -52°C to +177°C (-62°F to +350°F)
• Extended Range:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)

Humidity Resistance

• Relative humidity: < 3% change in ASF under 93% humidity (IEC standard 68-2-3 for up to 56 days).

Pressure Seal

• Viton® O-ring for differential pressure sealing. Pressure tests available upon request.

Enhanced Features

• TipLoc Bonding: Patented molding for robust tip-to-body connection.
• CableLoc Design: Ensures 330 N (75 lbf) pull strength for secure connections.
• FluidLoc Option: Prevents liquid leakage through the cable interior.

FAQ

Q1: What type of connector does this probe use?
A: It is equipped with a miniature coaxial ClickLoc connector for secure and easy installation.

Q2: Can the probe operate in high-temperature environments?
A: Yes, the extended temperature range variant supports up to +218°C for the probe tip and +260°C for cables and connectors.

Q3: What sealing mechanism is included?
A: The probe features a Viton® O-ring for differential pressure sealing, providing reliable operation in challenging environments.

Q4: Is FluidLoc an included feature?
A: FluidLoc is optional and can be specified for applications requiring oil or fluid leakage prevention.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
