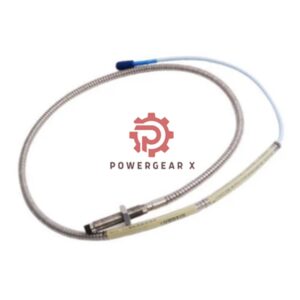

3300 XL Proximity Probe 330104-00-24-05-02-00 Bently Nevada

Overview

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330104-00-24-05-02-00) is engineered for precise measurement in industrial environments. Designed with advanced technology, the probe integrates various critical features providing reliable performance.

Key Features

• Manufacturer: Bently Nevada
• Product Type: 330104-00-24-05-02-00 3300 XL 8 mm Proximity Probe
• Made in: U.S.A
• Certificate of Origin (COO): Available upon request
• Unthreaded Length Option: 00 = 0 mm
• Overall Case Length Option: 24 = 240 mm
• Total Length Option: 05 = 0.5 meters (1.6 feet)
• Connector and Cable Type: 02 = Miniature coaxial ClickLocTM connector, standard cable
• Agency Approval Option: 00 = Not required
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)

Technical Specifications

• Weight: 0.323 kg
• Probe Pressure: Designed to seal differential pressure with a Viton® O-ring; not pressure-tested prior to shipment. Custom design department available for pressure tests.
• Probe Temperature Range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range:
    • Probe tip: -52°C to +218°C (-62°F to +425°F)
    • Probe cable and connector: -51°C to +260°C (-60°F to +500°F)
• Humidity Performance: Less than a 3% change in Average Scale Factor (ASF) in 93% humidity (IEC standard 68 2 3) for up to 56 days.
• Power Supply Requirements:
  • Requires -17.5 Vdc to -26 Vdc (12 mA max consumption)
  • Operation at voltages above -23.5 Vdc may reduce linear range.
• Output Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Cable Options

• Standard Cable Design: Incorporates patented TipLoc molding for enhanced bond strength. Additionally, the CableLoc design ensures a pull strength of 330 N (75 lbf).
• FluidLoc Cable Option: Prevents leakage of oil and fluids through the cable’s interior.

FAQs

1. What are the key benefits of the 3300 XL Proximity Probe?
   The probe offers high accuracy, robust construction, and enhanced sealing capabilities, essential for ensuring the reliability of critical monitoring systems.
2. Can the probe be tested for pressure sealing?
   Yes, custom testing for pressure sealing is available through the custom design department.
3. What is the humidity tolerance of the probe?
   The probe maintains less than a 3% change in output under 93% humidity for up to 56 days, conforming to IEC standards.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
