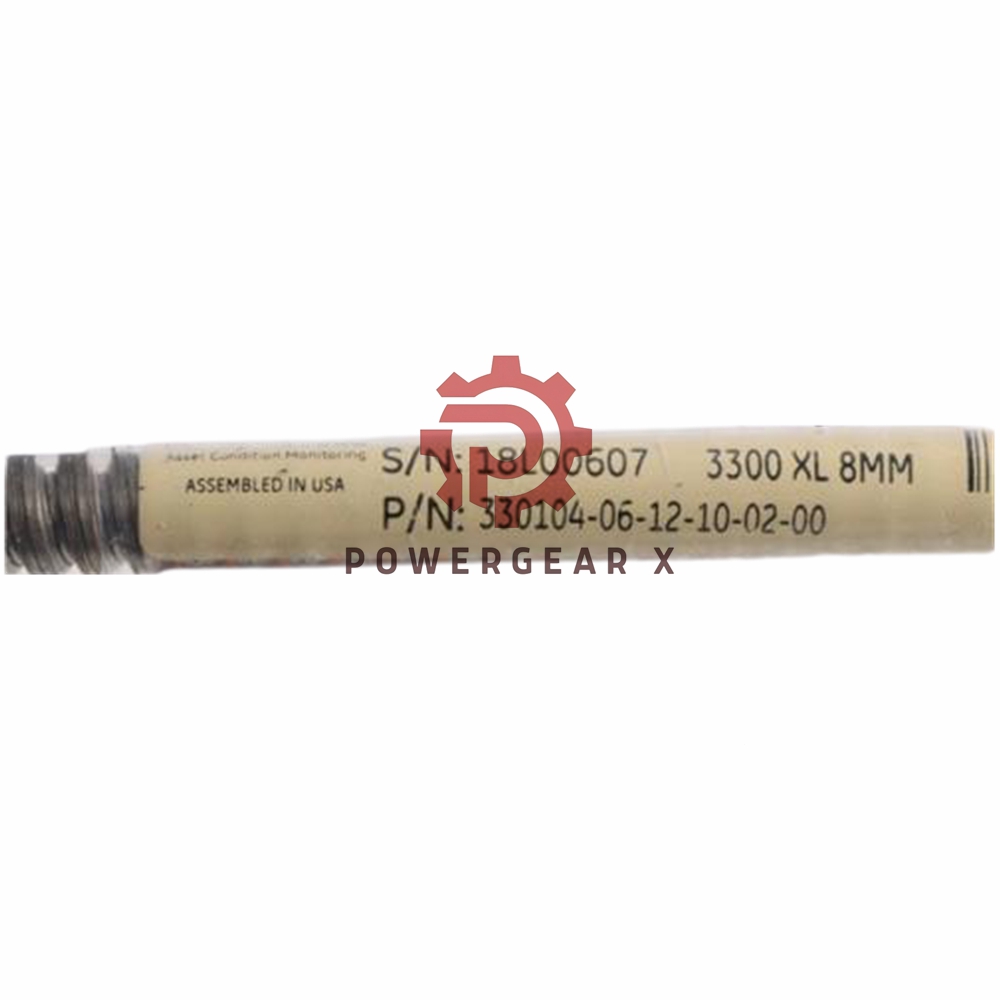

3300 XL Proximity Probe 330104-06-12-10-02-00 Bently Nevada

Overview

The Bently Nevada 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe is a precision sensing device engineered for reliable measurement and monitoring in industrial applications. Made in the U.S.A., it boasts advanced technology, robust construction, and the ability to operate in extreme environmental conditions.

Technical Specifications

• Manufacturer: Bently Nevada
• Product No.: 330104-06-12-10-02-00
• Product Type: 3300 XL 8 mm Proximity Probes
• Length Options:
  • Unthreaded Length: 06 = 60 mm
  • Overall Case Length: 12 = 120 mm
  • Total Length: 10 = 1.0 metre (3.3 feet)
• Connector and Cable Type: 02 = Miniature coaxial ClickLoc™ connector, standard cable
• Agency Approval: 00 = Not required
• Construction Materials:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 Kg
• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range:
    • Probe Tip: -52°C to +218°C (-62°F to +425°F)
    • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)
• Probe Pressure: Designed to seal differential pressure with a Viton® O-ring; pressure testing not conducted prior to shipment.
• Power Requirements:
  • -17.5 Vdc to -26 Vdc (with nonincendive circuit)
  • -23 Vdc to -26 Vdc with barriers
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Relative Humidity: Maintains less than a 3% change in average scale factor when subjected to 93% humidity for up to 56 days.

FAQ

• Q: What is the significance of using Polyphenylene sulfide (PPS) for the probe tip material?
  A: PPS provides excellent thermal stability and resistance against chemicals, ensuring reliable performance in diverse environments.
• Q: What happens if the probe is subjected to voltages outside the specified range?
  A: Operation at a more positive voltage than -23.5 Vdc may lead to reduced linear range.
• Q: Can the probe be used in high humidity conditions?
  A: Yes, the probe is designed to function effectively in environments with relative humidity up to 93%.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
