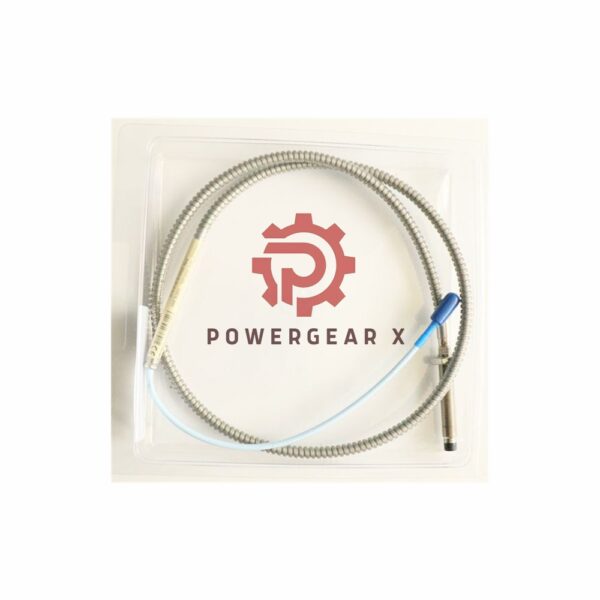

3300 XL Proximity Probe Bently Nevada 330104-00-06-50-02-00

Overview:

The Bently Nevada 3300 XL 8 mm Proximity Probe (Part No. 330104-00-06-50-02-00) is for precision measurement in industrial applications, offering robust and reliable performance. It features a miniature coaxial ClickLoc connector and standard cable, designed for use in harsh conditions. The probe’s case is made of high-quality AISI 303 or 304 stainless steel, ensuring durability and resistance to environmental factors.

Key Features and Specifications:

• Model: Bently Nevada 3300 XL 8 mm Proximity Probe
• Product Number: 330104-00-06-50-02-00
• Length Options:
  • Unthreaded Length: 0 mm
  • Overall Case Length: 60 mm
  • Total Length: 5.0 meters (16.4 feet)
• Connector Type: Miniature coaxial ClickLoc connector
• Cable Type: Standard cable
• Agency Approvals: None required
• Material:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 303 or 304 stainless steel
• Weight: 0.323 kg
• Operating Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range: -52°C to +218°C for probe tip; -51°C to +260°C for cable and connector
• Humidity Resistance: Less than a 3% change in Average Scale Factor (ASF) in 93% humidity
• Pressure Sealing: Designed to seal differential pressure between the probe tip and case with Viton® O-ring
• Power Supply: -17.5 Vdc to -26 Vdc (12 mA max); operation at -23.5 Vdc reduces linear range
• Output Resistance: 50 Ω
• Performance Characteristics: Best when used with AISI 4140 steel target

FAQ:

• Q: What is the maximum operating temperature of the probe?
  • A: The standard probe operates at temperatures up to +177°C, while the extended range can handle up to +218°C for the probe tip.
• Q: Can this probe be used in wet conditions?
  • A: Yes, the probe features a FluidLoc cable option to prevent liquids from leaking through the cable, making it suitable for harsh environments.
• Q: What is the weight of the probe?
  • A: The probe weighs approximately 0.323 kg.
• Q: Can I use this probe with other targets?
  • A: The system accuracy and specifications are optimized for AISI 4140 steel targets.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
