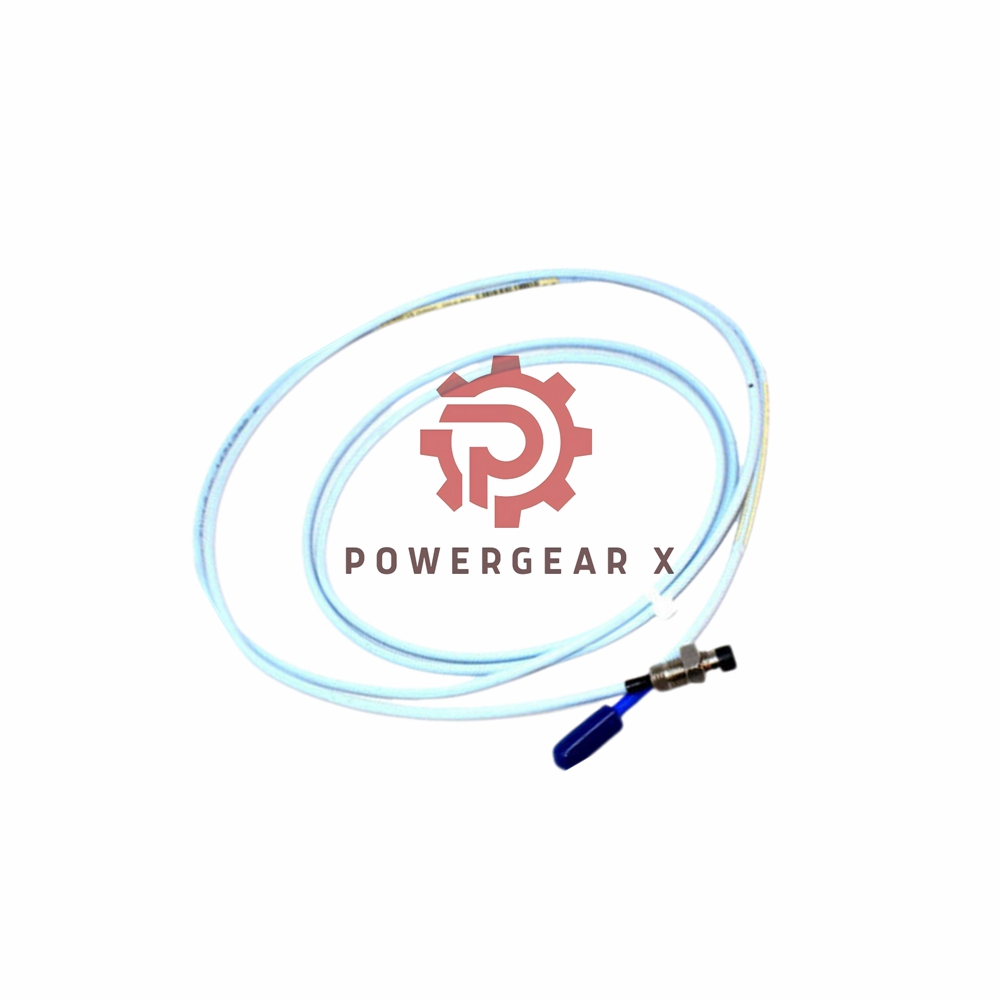

3300 XL Proximity Probe Bently Nevada 330104-00-08-90-02-05

Overview:

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330104-00-08-90-02-05) is a high-performance sensor designed for use in machinery protection and condition monitoring systems. Made in the U.S.A., this probe offers excellent durability and accuracy, making it ideal for applications where precise vibration measurements are required. It features advanced design elements that improve reliability and performance over previous models, ensuring long-term operation in harsh industrial environments.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• Product Number: 330104-00-08-90-02-05
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 Kg
• Unthreaded Length: 0 mm
• Overall Case Length: 80 mm
• Total Length: 9.0 meters (29.5 feet)
• Connector Type: Miniature coaxial ClickLoc connector, standard cable
• Agency Approvals: CSA, ATEX, IECEx
• Operating Temperature:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range: -52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to +500°F) for the cable and connector
• Probe Sealing: Viton® O-ring seal, preventing differential pressure leakage
• Pressure Testing: Not pre-tested; custom pressure testing available upon request
• Sensitivity: Less than 2 mV change per volt change in input voltage
• Output Resistance: 50 Ω
• Power Supply: Requires -17.5 Vdc to -26 Vdc
• Relative Humidity Resistance: Tested in 93% humidity for up to 56 days with less than 3% change in Average Scale Factor (ASF)
• Extended Features: Optional FluidLoc cable prevents fluid leakage in machinery systems

FAQ:

1. What is the maximum operating temperature for the 3300 XL 8 mm proximity probe?
   • The standard probe operates at temperatures between -52°C and +177°C. The extended range probe can tolerate temperatures up to +218°C for the probe tip and +260°C for the cable and connector.
2. What is the power supply requirement for this probe?
   • The probe requires a supply voltage of -17.5 Vdc to -26 Vdc for operation with a non-incendive circuit.
3. Is the probe resistant to fluid leakage?
   • Yes, an optional FluidLoc cable is available to prevent oil and liquid leakage through the cable’s interior.
4. Does the probe have agency approvals?
   • The 3300 XL probe is CSA, ATEX, and IECEx approved for use in hazardous environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
