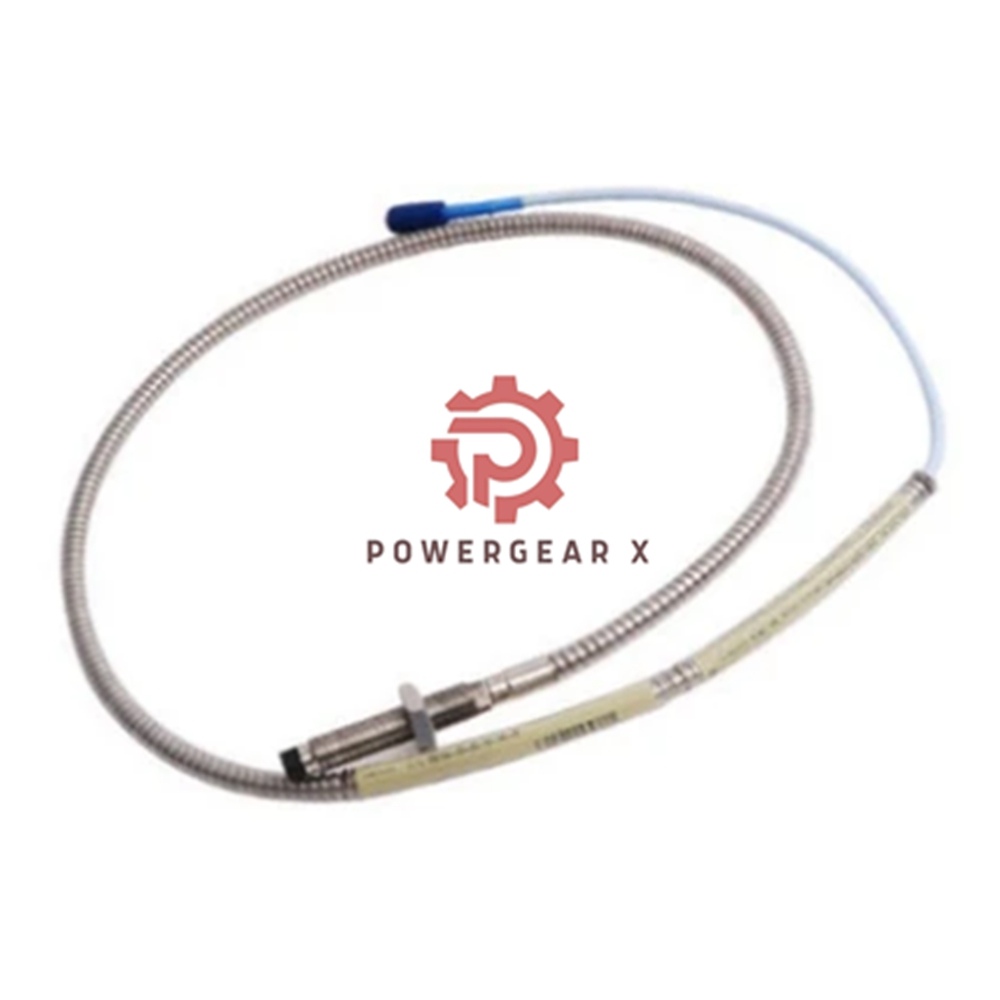

3300 XL Proximity Probe Bently Nevada 330104-00-24-10-02-00

Overview

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330104-00-24-10-02-00) is designed for precise monitoring in industrial applications. Made in the USA, this probe features advanced technology, ensuring reliability and durability. Its construction includes robust materials suitable for various operating conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Proximity Probe
• Product No.: 330104-00-24-10-02-00
• Overall Case Length: 240 mm (24)
• Total Length: 1.0 meter (3.3 feet) (10)
• Unthreaded Length: 0 mm (00)
• Connector Type: Miniature coaxial ClickLoc™ connector with standard cable (02)
• Agency Approval: Not required (00)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Weight: 0.323 kg
• Probe Pressure Rating: Designed to seal differential pressure using a Viton® O-ring
• Standard Operating Temperature Range: -52°C to +177°C (-62°F to +350°F)
• Extended Operating Temperature Range:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)
• Relative Humidity: Less than 3% change in Average Scale Factor (ASF) tested in 93% humidity for up to 56 days in compliance with IEC standard 68 2 3
• Power Requirements: -17.5 Vdc to -26 Vdc; consumption of 12 mA maximum
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Probe Pressure Testing: Probes are not pressure tested prior to shipment

FAQ

1. What is the function of the 3300 XL Proximity Probe?
   The probe measures the proximity of rotating machinery for predictive maintenance.
2. What materials are used in its construction?
   It features a Polyphenylene sulfide (PPS) probe tip and AISI 303 or 304 stainless steel for the case.
3. Can I test the probe for pressure sealing?
   Yes, contact the custom design department for testing options.
4. How does temperature affect performance?
   The probe operates effectively within specified temperature ranges, maintaining accuracy and reliability.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
