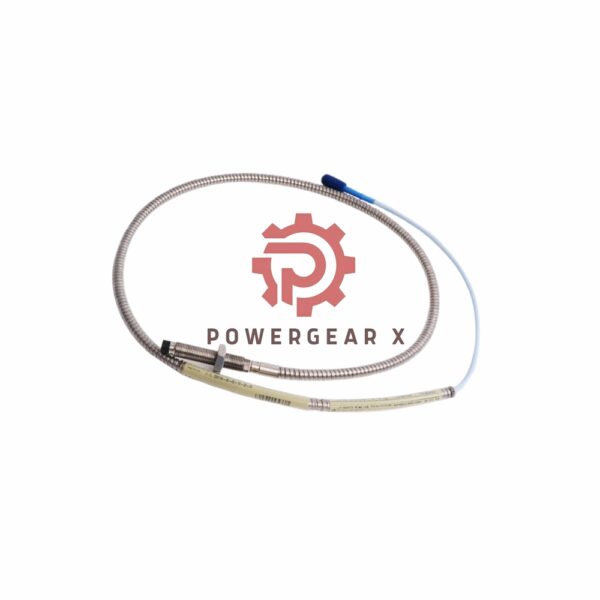

3300 XL Proximity Probe Bently Nevada 330104-14-19-10-11-00

Overview:

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product Number: 330104-14-19-10-11-00) is engineered to provide accurate proximity measurements in industrial environments. It features an advanced design with a polyphenylene sulfide (PPS) probe tip and a stainless steel (SST) case. This probe is ideal for use in critical machinery monitoring and predictive maintenance systems. Its construction ensures robust performance, even in high-pressure and extreme temperature conditions. It is available in new and original factory packing, backed by a 12-month factory warranty.

Technical Specifications:

• Brand: Bently Nevada
• Part Number: 330104-14-19-10-11-00
• Model: 3300 XL 8 mm Proximity Probe
• Suffix Codes:
  • 14: 14 mm unthreaded length option
  • 19: 190 mm overall case length option
  • 10: 1.0 metre (3.3 feet) total length option
  • 11: Miniature coaxial ClickLoc connector, FluidLoc cable
  • 00: No agency approval required
• Weight: 0.323 kg
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Pressure: Designed to seal differential pressure with a Viton® O-ring (not pressure tested before shipment)
• Cable: Patented CableLoc design for 330 N (75 lbf) pull strength
• Cable Option: Optional FluidLoc cable to prevent leakage of liquids from the machine
• Power Supply: Requires -17.5 Vdc to -26 Vdc (12 mA maximum consumption)
• Output Resistance: 50 Ω
• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range: -52°C to +218°C (-62°F to +425°F) for the probe tip, -51°C to +260°C (-60°F to +500°F) for the probe cable and connector
• Humidity: Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity for up to 56 days (per IEC 68-2-3)

FAQ:

• Q1: What is the recommended power supply for the 3300 XL 8 mm Proximity Probe?
  A1: The probe requires a -17.5 Vdc to -26 Vdc power supply, with a maximum current consumption of 12 mA.
• Q2: Can I use this probe in high-pressure environments?
  A2: Yes, the probe is designed to seal differential pressure between the probe tip and case, using a Viton® O-ring. However, pressure testing must be arranged with the custom design department if required for your application.
• Q3: What is the purpose of the FluidLoc cable option?
  A3: The FluidLoc cable option prevents oil and other liquids from leaking out of the machine through the cable’s interior, making it suitable for environments where leakage protection is necessary.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
