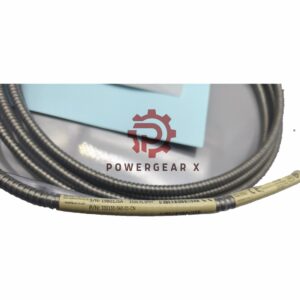

3300 XL Standard Cable | 330130-035-00-00 Bently Nevada

Overview

The Bently Nevada 3300 XL Extension Cable (Product No. 330130-035-00-00) is designed for reliable performance and durability in various industrial applications. Manufactured in the USA, this cable is optimized for use with the 3300 XL Proximitor Sensor and features advanced design elements to enhance signal integrity and robustness.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL
• Product Type: Extension Cable
• Cable Length:
  • 035: 3.5 meters (13.1 feet)
• Connector Protector and Cable Option:
  • 00: Standard cable
• Agency Approval Option:
  • 00: Not required
• Extension Cable Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Operating and Storage Temperature:
  • Standard cable: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight:
  • 0.119 kg (34 g/m or 0.4 oz/ft)
• Connector Type and Instructions:
  • Two 3300 XL: Gold “click” type connectors – Finger tight
  • One non-XL stainless steel connector: Plus one 3300 XL connector – Finger tight plus 1/8 turn using pliers
• Materials:
  • Proximitor Sensor Material: A308 aluminum
  • Connector Material: Gold-plated brass or gold-plated beryllium copper

Performance Characteristics

• Power Requirements:
  • -17.5 Vdc to -26 Vdc, maximum consumption of 12 mA.
• Output Resistance:
  • 50 Ω
• Sensitivity:
  • Less than 2 mV output voltage change per volt input voltage change.
• Linear Range:
  • From 0.25 mm (10 mils) to 2 mm (80 mils) with an approximate voltage range of –1 to –17 Vdc.
• Field Wiring Specifications:
  • Recommended wire gauge: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum field wiring length: 305 meters (1,000 feet)

Frequently Asked Questions (FAQ)

1. What is the maximum cable length for the 3300 XL Extension Cable?
   • The maximum length is 305 meters (1,000 feet) between the Proximitor Sensor and the monitor.
2. Can this cable be used in extreme temperatures?
   • Yes, it operates and stores effectively from -51 °C to +177 °C (-60 °F to +351 °F).
3. What types of connectors does the cable use?
   • It utilizes two gold “click” type connectors and one non-XL stainless steel connector.
4. What advantages does the patented design provide?
   • The advanced molding and cable design enhance durability and secure connections.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
