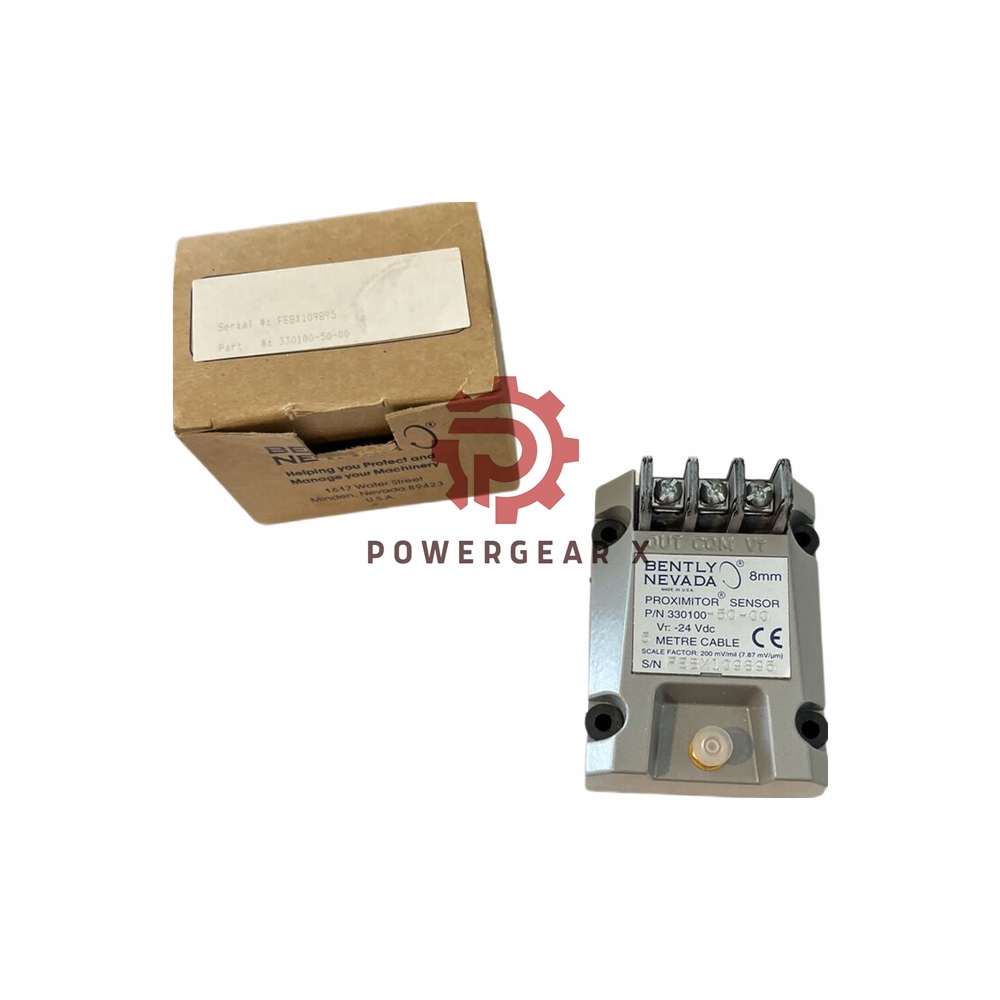

330100-50-01 Bently Nevada | 3300 Proximitor Sensor

Overview:

The Bently Nevada 3300 Proximitor Sensor (Model No. 330100-50-01) is a robust industrial sensor designed for precise proximity measurements in demanding environments. With its reliable performance and durable construction, this sensor is ideal for monitoring machinery in critical applications where precise vibration and position detection is needed.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 Proximitor Sensor, Product No. 330100-50-01
• Suffix Details:
  • “50”: Indicates a 5-meter cable length.
  • “01”: No agency approvals required.
• Weight: 0.29 kg
• Operating Temperature: -51°C to +100°C (-60°F to +212°F)
• Storage Temperature: -51°C to +100°C (-60°F to +212°F)
• Power Requirements: -17.5 Vdc to -26 Vdc at 12 mA max.
• Output Resistance: 50 Ω
• Relative Humidity: Handles 100% condensing environments when connectors are sealed.
• Probe Pressure: Designed for differential pressure sealing with Viton® O-ring. Pressure-tested versions are available upon request.

FAQs

1. What is the significance of the suffix in the product number?
   • The “50” denotes a total length of 5 meters, while “01” specifies that no agency approvals are required.
2. Can the sensor operate in humid environments?
   • Yes, it supports 100% relative humidity when the connectors are adequately sealed.
3. What voltage is required to operate the sensor?
   • It requires a voltage range between -17.5 Vdc to -26 Vdc.

For more detailed information: GE_Bently_Nevada_330100_Datasheet_2-15
