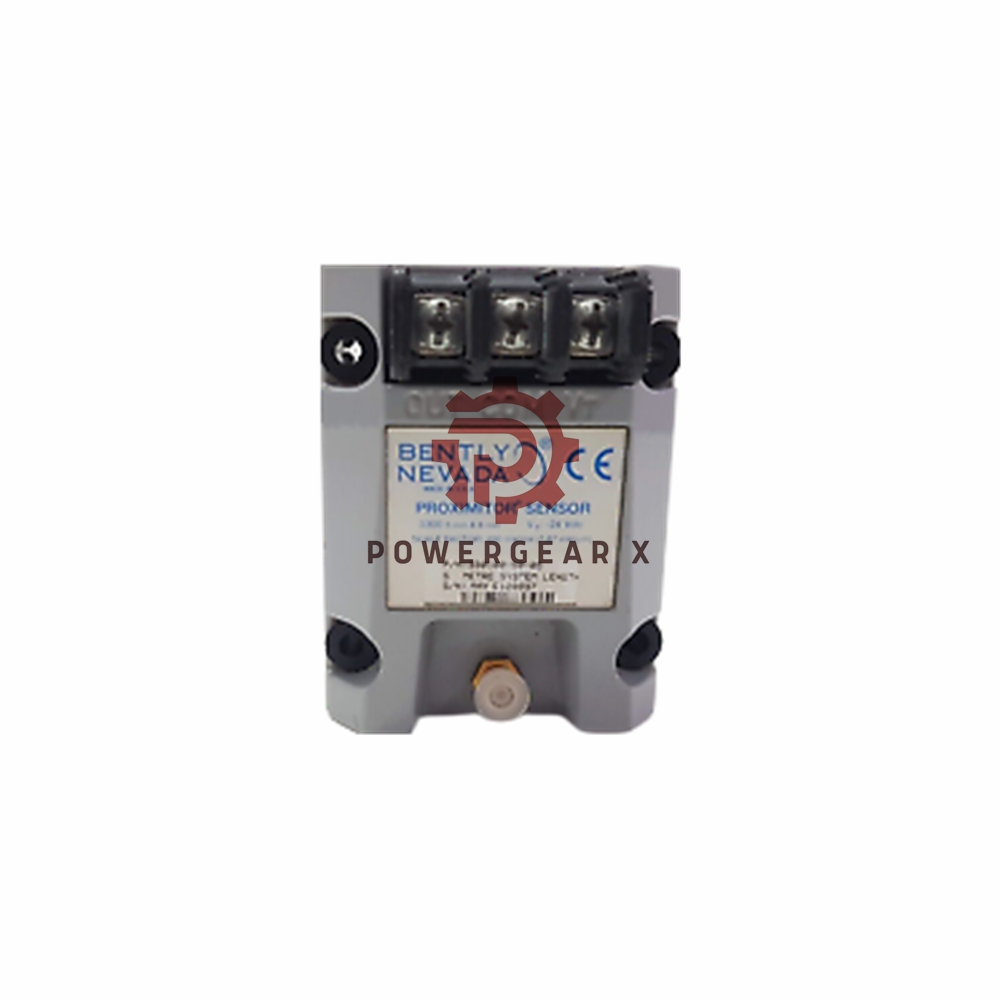

330100-50-05 Bently Nevada | 3300 Proximitor Sensor

Overview

The Bently Nevada 3300 Proximitor Sensor (330100-50-05) is a discontinued model, replaced by the advanced 330180-50-05 3300 XL Proximitor Sensor. Renowned for its accuracy and reliability, this sensor is widely used in industrial machinery monitoring to detect proximity and vibration.

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 330100-50-05
• Replacement: 330180-50-05
• Length Option: 5.0 meters (16.4 feet)
• Power Requirements: Operates at -17.5 Vdc to -26 Vdc, consuming a maximum of 12 mA.
• Supply Sensitivity: Less than 2 mV output change per volt input change.
• Output Resistance: 50 Ω
• Weight: 0.29 kg
• Storage and Operating Temperatures: -51°C to +100°C (-60°F to +212°F).
• Humidity Tolerance: Fully condensing (non-submersible when connectors are protected).

Applications:

• Vibration monitoring in rotating machinery
• Machinery protection systems
• Condition monitoring for industrial machinery
• Used in environments with varying temperatures and humidity levels

Frequently Asked Questions (FAQ)

Q1: What is the replacement for the 330100-50-05 sensor?
A1: The replacement is the 330180-50-05 3300 XL Proximitor Sensor, offering improved features and compatibility.

Q2: Is the sensor suitable for high-humidity environments?
A2: Yes, it operates reliably at 100% condensing humidity, provided connectors are protected.

Q3: What are the power requirements?
A3: The sensor requires -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA.

For more detailed information: GE_Bently_Nevada_330100_Datasheet_2-15
