330101-00-15-05-01-00 | Proximity Probes – Bently Nevada

Overview

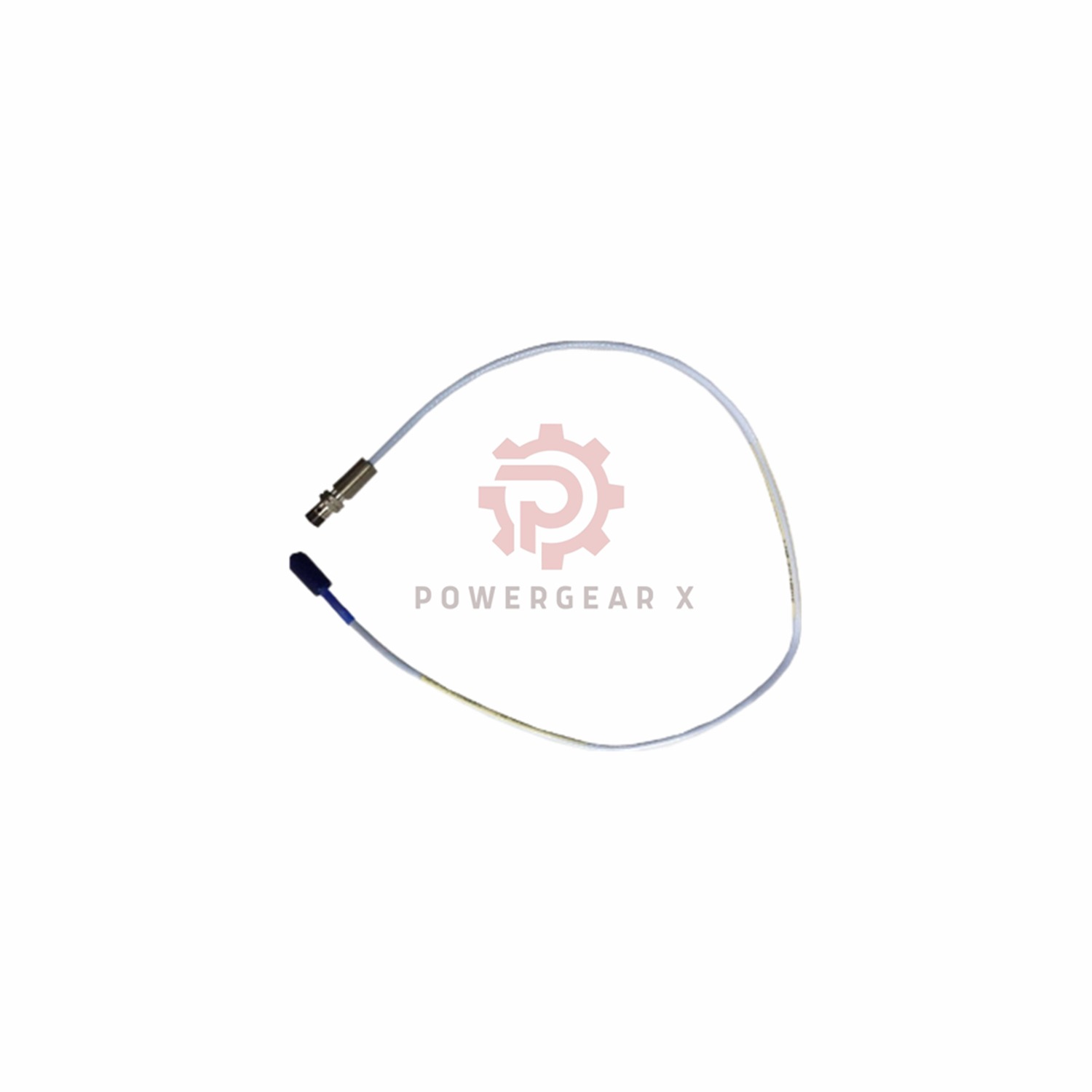

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-15-05-01-00) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a robust 8 mm diameter, this probe ensures durability and reliability in harsh environments. Additionally, it incorporates advanced technologies such as TipLoc and CableLoc for enhanced performance. Moreover, it is available with optional FluidLoc for improved fluid resistance.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe
• Product No.: 330101-00-15-05-01-00
  • 00: Unthreaded Length (0.0 in)
  • 15: Overall Case Length (1.5 in)
  • 05: Total Length (0.5 meter / 1.6 feet)
  • 01: Miniature coaxial ClickLoc connector with standard cable
  • 00: Not required
• Thread Type: 3/8-24 UNF
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel
• Temperature Range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended: -52°C to +218°C (-62°F to +425°F)
• Linear Range: 2 mm (80 mils)
• Nominal Probe DC Resistance: 7.45 ± 0.50 Ω
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Weight: 323 g/m (11.4 oz)

Contact Information

For any inquiries, please contact: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
