330101-00-16-10-01-CN – 3300 XL 8 mm Proximity Probes

3300 XL 8 mm Proximity Probe

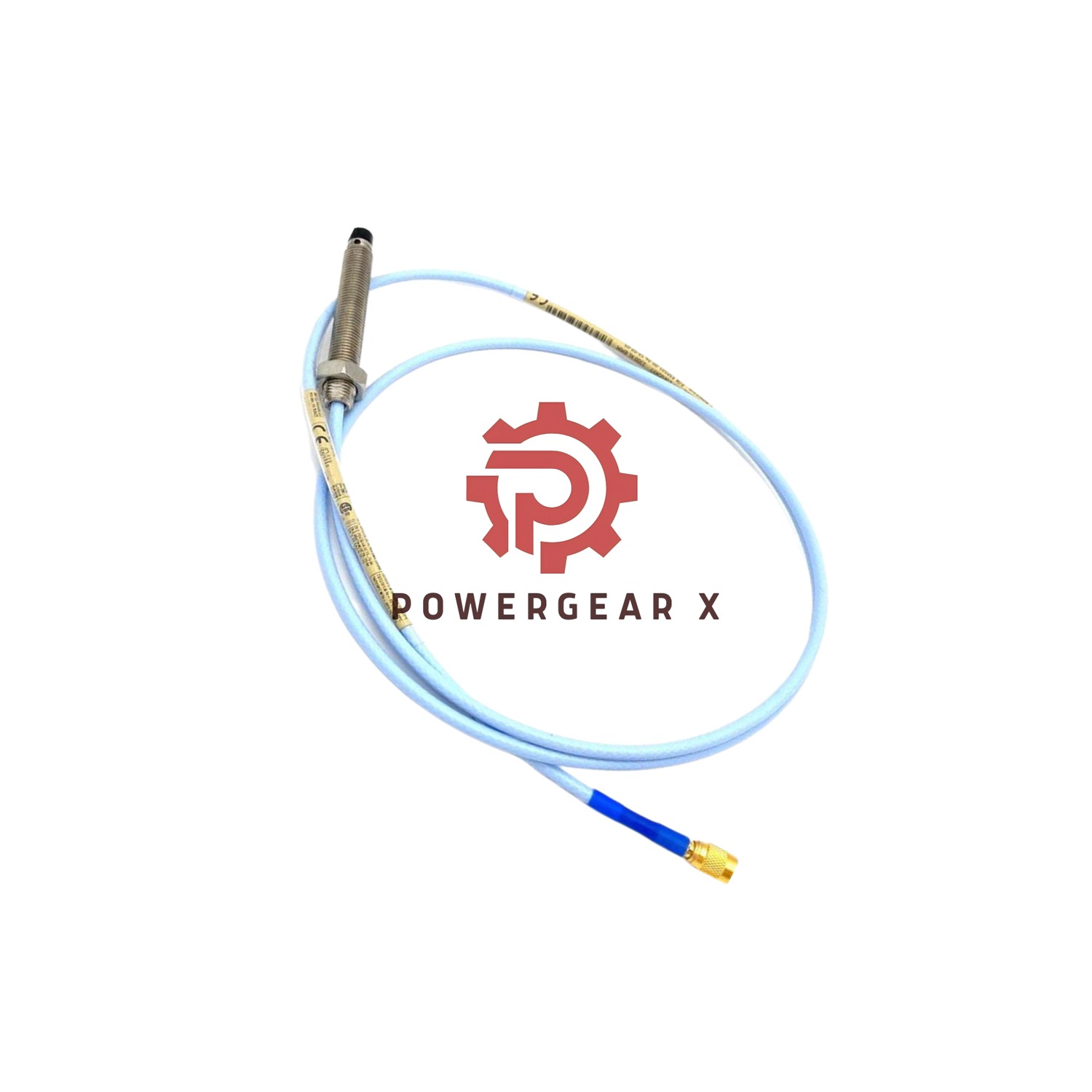

This industrial-grade 330101-00-16-10-01-CN proximity probe features 3/8-24 UNF threads and a 1.6-inch (40.6 mm) compact case, optimized for vibration monitoring in turbines, compressors, and high-speed rotating equipment. The 1.0-meter standard cable with a ClickLoc connector protector ensures reliable signal transmission in harsh environments. Compliant with country-specific certifications, it meets global safety standards for oil, gas, and power generation applications.

Key Specifications

• Linear Range: ±1.8 mm (±0.07 in) from null point
• Frequency Response: 0.5 Hz–12 kHz (±1.3 dB)
• Mounting Torque: 7–10 Nm (5–7.4 lb-ft)
• Cable Tensile Strength: 55 N (12.4 lbf) pull resistance
• Housing Material: 316L stainless steel with PEEK insulation

Performance Features

• Temperature Stability: ±0.4% output deviation (-20°C to +100°C)
• Shock Resistance: 60 g peak (MIL-STD-810G, 11 ms duration)
• IP Rating: IP67 (submersible up to 1m/30min)
• Phase Shift: <1.5° at 10 kHz
• Weighing: 323 g/m (11.4 oz/ft)

The 330101-00-16-10-01-CN probe includes factory calibration at 8 mV/µm ±1% and integrates seamlessly with Bently Nevada 3300/3500 monitoring systems.

Contact Information Inquiries:

For further information or inquiries, please contact us at:[email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
