Product details
Product Description

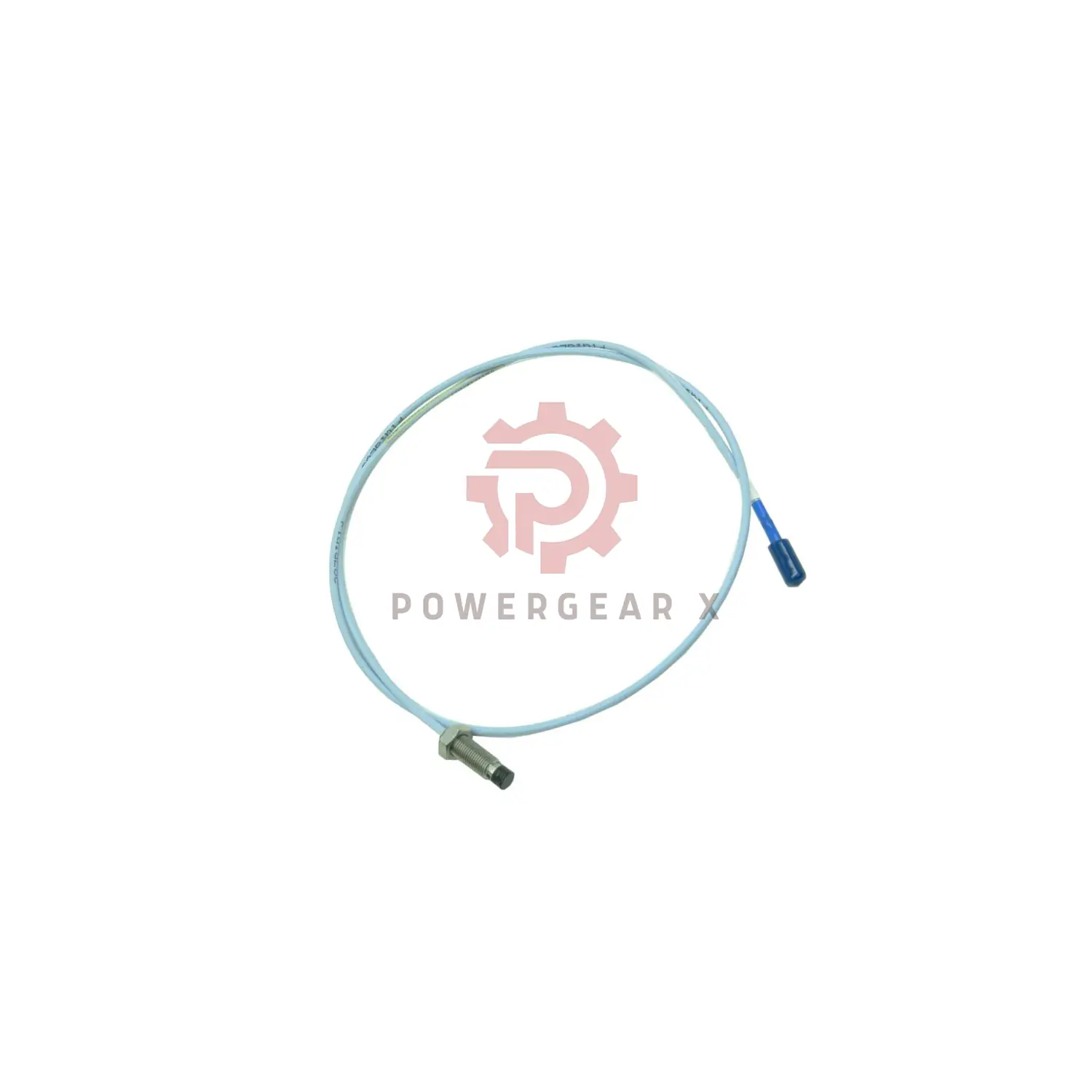

The Bently Nevada 330101-00-16-10-02-05 is a 3300 XL 8 mm Proximity Probe designed for high-precision vibration monitoring in space-sensitive industrial applications. Featuring a 3/8-24 UNF thread and a 1.6″ stainless steel case, this probe integrates TipLoc molding for robust tip durability and CableLoc technology (75 lbf pull resistance). Certified for CSA, ATEX, IECEx, it operates reliably from -52°C to +177°C, with optional FluidLoc cable to prevent fluid ingress in harsh environments.
Technical Specifications
| Brand | Bently Nevada |
|---|---|
| Model | 3300 XL 8 mm Probe P/N: 330101-00-16-10-02-05 |
| Configuration | 00: 0.0″ Unthreaded Length 16: 1.6″ Case Length 10: 1.0m Cable 02: Mini ClickLoc Connector 05: CSA/ATEX/IECEx Certified |
| Key Parameters | Resistance: 7.59 Ω ±0.50 Linear Range: 2 mm (80 mils) Scale Factor: 7.87 V/mm ±5% Temperature: -52°C to +177°C Material: PPS Tip, AISI 303/304 SST Humidity: <3% ASF change at 93% RH |
Contact: For COO requests or custom testing inquiries, email [email protected].
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
