Overview

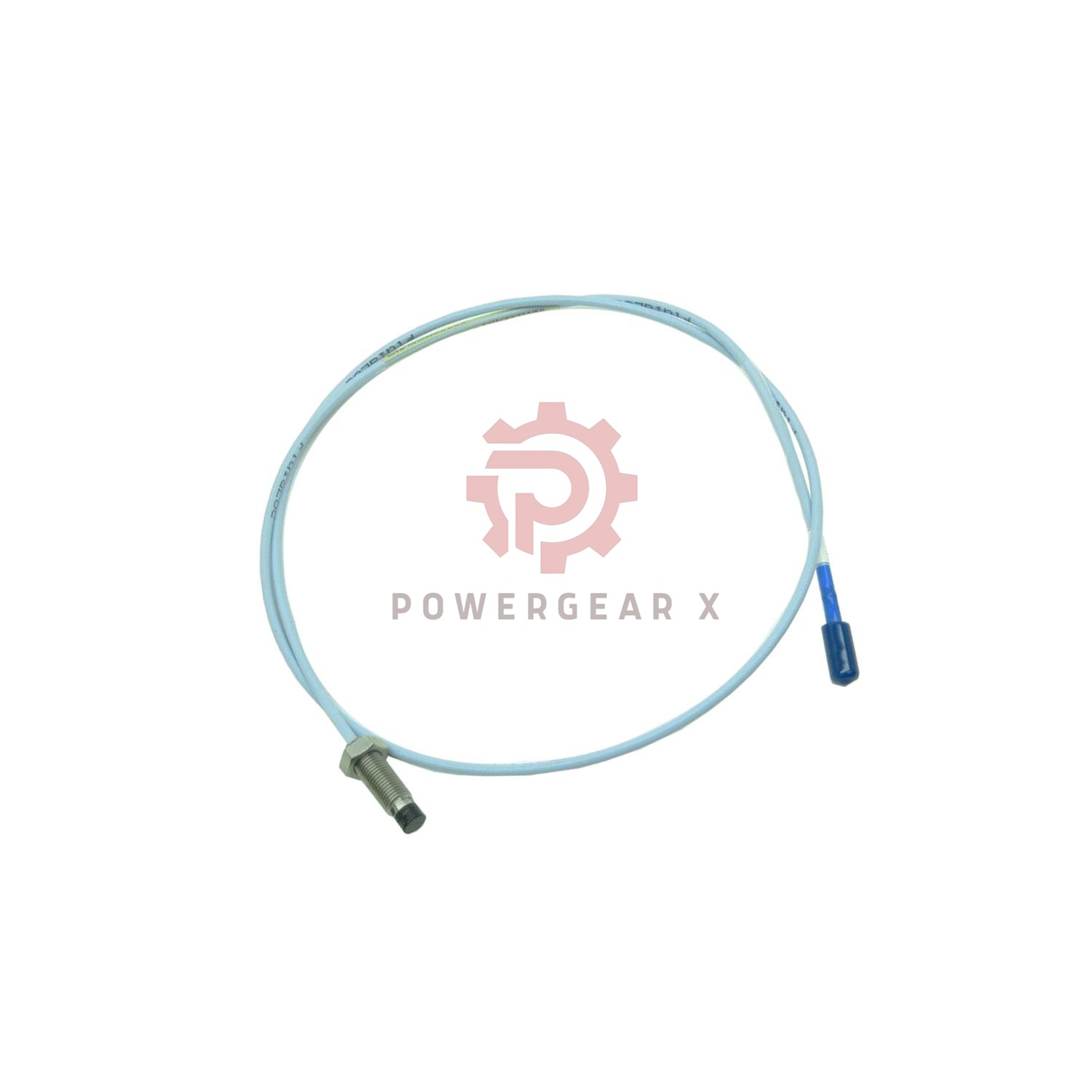

The Bently Nevada 3300 XL 8 mm Probe, with product number 330101 – 00 – 28 – 20 – 02 – CN, is a product proudly made in the USA. This model brings several enhancements compared to its predecessors. Thanks to patented technologies such as TipLoc and CableLoc, the connection between the probe tip and body, as well as the probe cable and tip, is more secure. The 8 mm probes, with their unique design, offer greater ruggedness, making them suitable for various applications. An optional FluidLoc cable option is available to prevent liquid leakage.

Technical Specification

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe
• Product No. Suffix Meaning:
  • “00” represents an unthreaded length of 0.0 in
  • “28” indicates an overall case length of 2.8 in
  • “20” stands for a total length of 2.0 meters
  • “02” denotes a Miniature coaxial ClickLoc connector with a standard cable
  • “CN” stands for Country Specific Approval

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 323 g/m (11.4 oz)

Contact Information

For any questions or further information regarding the Bently Nevada 3300 XL 8 mm Probe (330101 – 00 – 28 – 20 – 02 – CN), please contact [email protected].

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
