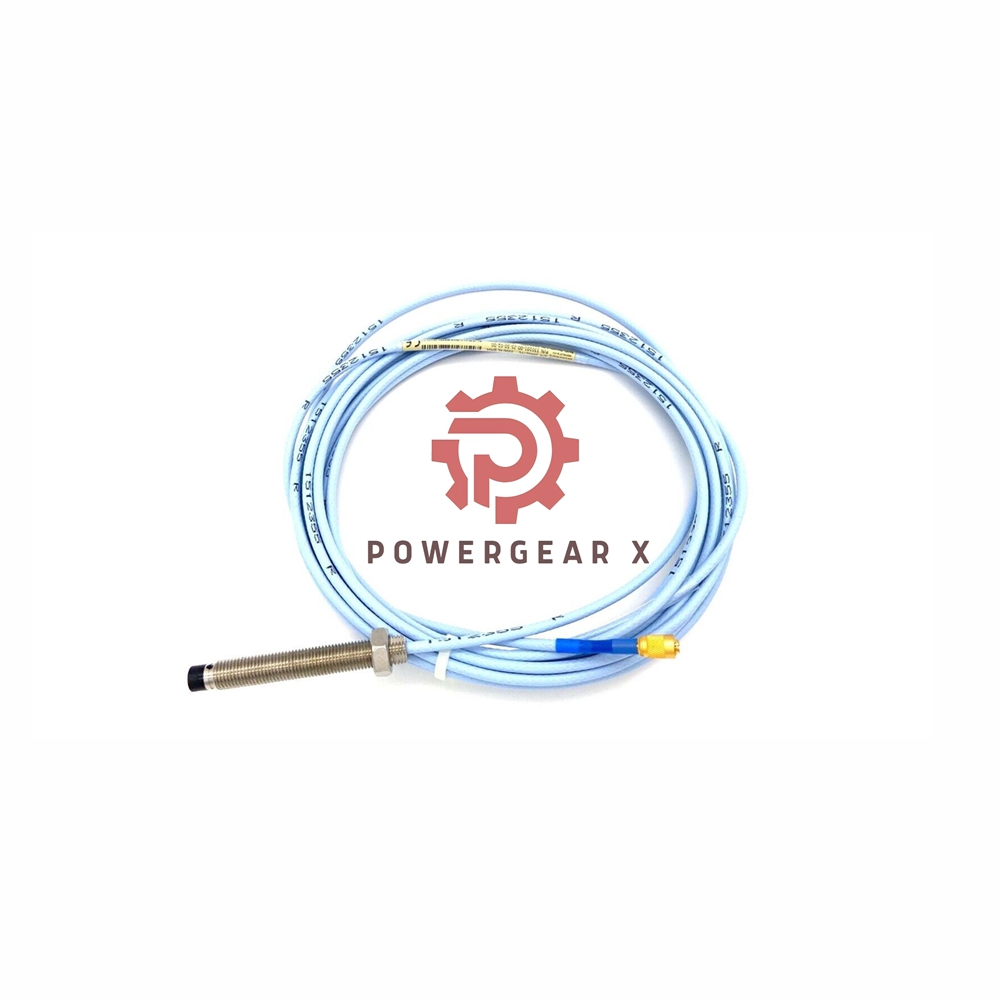

330101-00-35-05-02-00 3300 XL 8 mm Proximity Probe

Overview:

The Bently Nevada 3300 XL 8 mm Proximity Probe (model 330101-00-35-05-02-00) is for precision vibration and position monitoring in industrial machinery. This high-performance device is ideal for shaft displacement and vibration measurements. It is particularly reliable in challenging industrial environments, ensuring effective condition monitoring for machines in various sectors.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330101-00-35-05-02-00
• Suffix Meaning:
  • 330101: Series identifier for 3300 XL Proximity Probes
  • 00: Standard probe length
  • 35: Thread size (3/8-24 UNF)
  • 05: Length of the probe (5 inches)
  • 02: Coaxial connector with standard cable
• Thread Type: 3/8-24 UNF, without armor
• Unthreaded Length: 0.0 in (00)
• Overall Case Length: 3.5 in (35)
• Total Length: 0.5 meters (1.6 feet, 05)
• Connector and Cable Type: Miniature coaxial ClickLoc™ connector with standard cable (02)
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 303 or 304 Stainless Steel (SST)
• Operating Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Pressure: Seals differential pressure using a Viton® O-ring
• Weight: 0.323 kg
• Agency Approval: Not required

FAQs:

Q: What is the temperature range for the 3300 XL 8 mm Proximity Probe?
A: The probe operates within a temperature range of -51°C to +177°C (-60°F to +351°F), suitable for extreme industrial environments.

Q: What materials are used in the probe’s construction?
A: The probe tip is made of Polyphenylene Sulfide (PPS), while the probe case is constructed from durable AISI 303 or 304 Stainless Steel (SST).

Q: Does the 3300 XL 8 mm Proximity Probe require any certifications?
A: No specific certifications are required for this model, but a Certificate of Origin (COO) is available upon request.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
