330103-00-11-10-02-05 | Proximity Probes – Bently Nevada

Overview

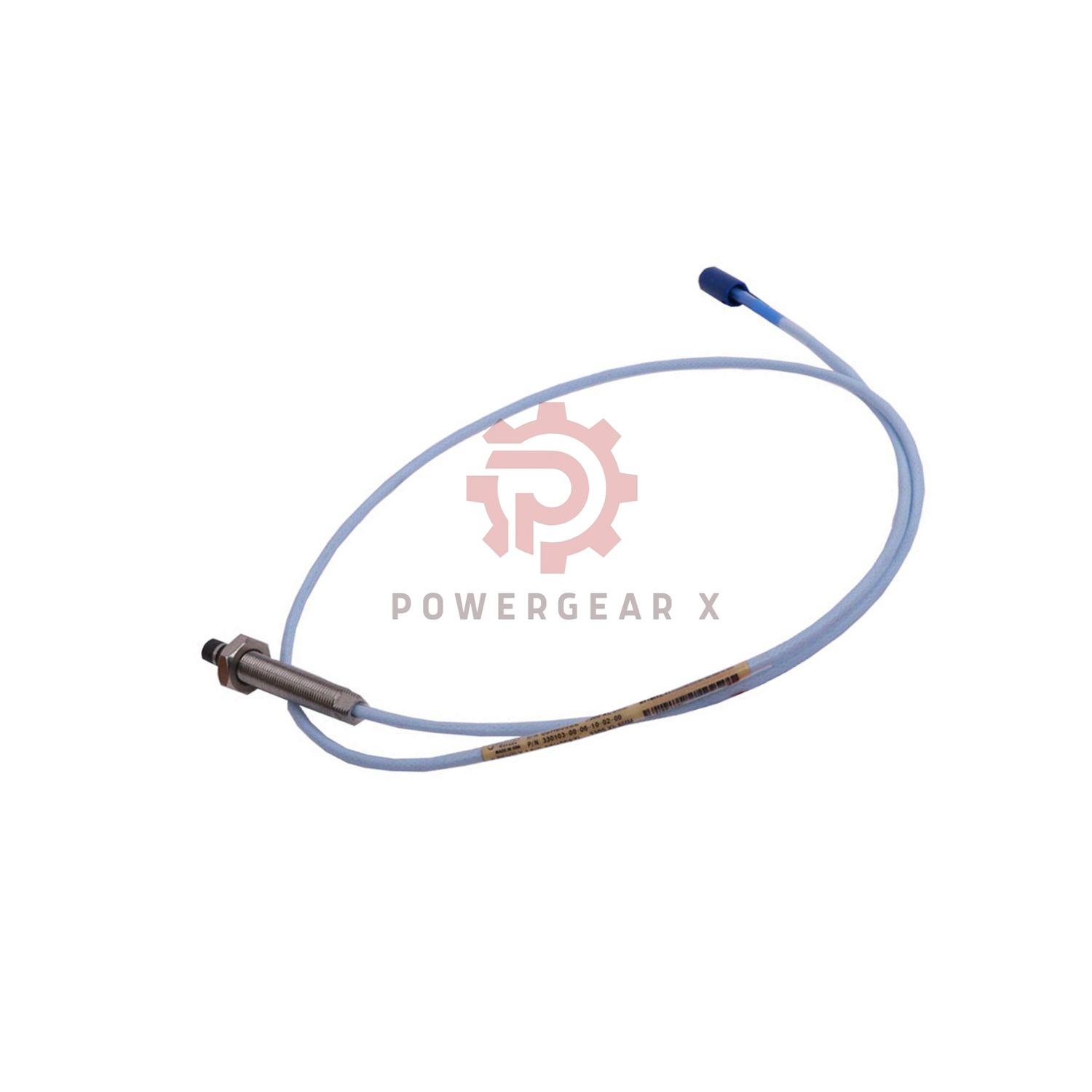

Manufactured by Bently Nevada, the 330103-00-11-10-02-05 is a high-performance 3300XL 8mm proximity probe designed for precise vibration monitoring. Furthermore, it features an M10x1 threaded case and a robust stainless steel construction. Additionally, this probe comes with intrinsic safety certifications, making it suitable for hazardous environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300XL 8mm Proximity Probe (330103-00-11-10-02-05)
• Suffix Breakdown:
  • 00: Unthreaded length (0mm)
  • 11: Overall case length (11mm)
  • 10: 1.0m cable length
  • 02: Miniature coaxial ClickLoc connector
  • 05: CSA, ATEX, IECEx approvals
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 stainless steel
• Sealing: Viton® O-ring (not pressure-tested)
• Resistance: 7.59Ω ±0.50 (1.0m cable)
• Linear Range: 0.25–2.3mm (-1 to -17Vdc)
• Temperature Range: -52°C to +177°C (standard)
• Certifications: ATEX, IECEx, CSA

Applications

Ideal for industrial machinery monitoring, this probe excels in measuring radial vibration with a recommended gap setting of -9Vdc (1.27mm). Moreover, its extended temperature variant supports harsh environments up to 260°C for cables.

Contact Information

For any inquiries, please contact: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
