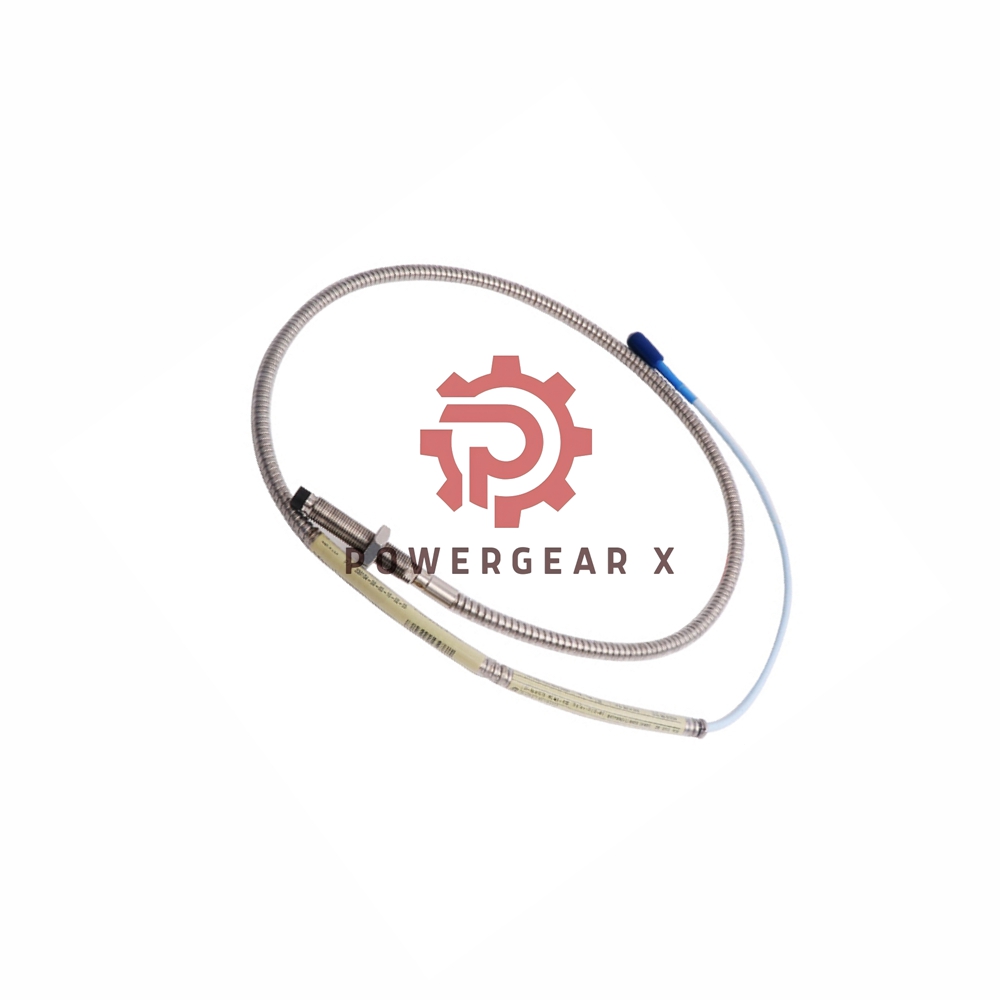

330104-00-06-10-02-05 3300 XL Proximity Probe Bently Nevada

Overview

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330104-00-06-10-02-05) is a precision measurement device designed for reliable proximity sensing in various industrial applications. This probe is made in the USA and offers advanced features, making it ideal for critical monitoring environments.

Key Specifications

• Manufacturer: Bently Nevada
• Product Type: 3300 XL 8 mm Proximity Probes
• Model Number: 330104-00-06-10-02-05

Length Options

• Unthreaded Length: 0 mm (00)
• Overall Case Length: 60 mm (06)
• Total Length: 1.0 meter (3.3 feet) (10)

Connector and Cable Type

• Connector Type: Miniature coaxial ClickLoc™ connector (02)
• Cable Type: Standard cable

Approvals

• Agency Approvals: CSA, ATEX, IECEx (05)

Materials

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)

Performance Characteristics

• Probe Sealing: Features a Viton® O-ring, designed to seal differential pressure.
• Weight: 0.323 Kg
• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Range: -52°C to +218°C (-62°F to +425°F) for probe tip; -51°C to +260°C (-60°F to +500°F) for the cable and connector
• Relative Humidity: Less than 3% change in Average Scale Factor (ASF) under 93% humidity for up to 56 days (IEC standard 68 2 3)

Electrical Characteristics

• Power Supply: Requires -17.5 Vdc to -26 Vdc (max 12 mA) when correctly installed; operation at -23.5 Vdc may reduce linear range.
• Supply Sensitivity: Less than 2 mV output voltage change per volt input voltage change
• Output Resistance: 50 Ω

Additional Features

• The patented TipLoc molding method enhances probe durability.
• The CableLoc design provides a pull strength of 330 N (75 lbf).
• An optional FluidLoc cable feature is available to prevent liquid leakage.

FAQ

1. What is the maximum altitude at which the 3300 XL probe can operate?
   • The probe operates effectively up to 2000 meters.
2. Can the probe operate in high humidity environments?
   • Yes, it is designed to maintain performance in up to 93% humidity.
3. What approvals does the probe hold?
   • It has CSA, ATEX, and IECEx approvals for safety and compliance.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
