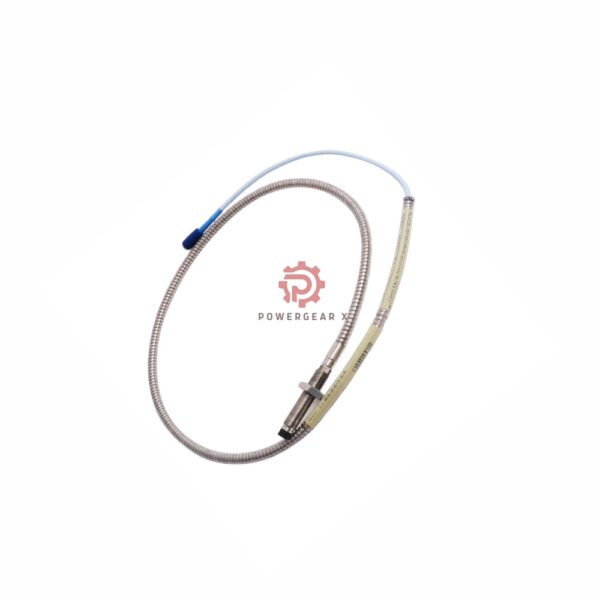

330104-00-07-90-12-05 Bently Nevada 3300 XL Proximity Probe

Overview

The Bently Nevada 330104-00-07-90-12-05 is a high-precision proximity probe from the 3300 XL 8 mm series, designed to deliver reliable performance in demanding industrial applications. This probe is built with enhanced durability, featuring patented TipLoc and CableLoc technologies to secure the probe tip and cable under extreme conditions. Its FluidLoc option ensures that oil or other liquids are prevented from leaking through the cable, making it suitable for rigorous environments.

Technical Specifications

• Model and Series: Bently Nevada 3300 XL 8 mm Proximity Probes.
• Product Number: 330104-00-07-90-12-05.
  • Unthreaded Length (00): 0 mm.
  • Overall Case Length (07): 70 mm.
  • Total Length (90): 9.0 meters (29.5 feet).
  • Connector and Cable-Type (12): Miniature coaxial ClickLoc connector with FluidLoc cable.
  • Agency Approval (05): CSA, ATEX, IECEx approvals for hazardous environments.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F).
  • Extended Range Probe: -52°C to +218°C (-62°F to +425°F) for the tip and up to +260°C (+500°F) for the cable.
• Pressure Sealing: Equipped with a Viton® O-ring to seal differential pressure.
• Power Requirements:
  • Operates with -17.5 Vdc to -26 Vdc.
  • Maximum current consumption: 12 mA.
  • Voltage beyond -23.5 Vdc may reduce linear range.
• Sensitivity to Supply Variations: Less than 2 mV output change per volt input change.
• Output Resistance: 50 Ω.
• Relative Humidity: Less than a 3% change in Average Scale Factor (ASF) under 93% humidity.

Applications

• Rotating Machinery Monitoring: Ensures the reliability of critical assets in industries like power generation, oil and gas, and manufacturing.
• Seal Protection: Designed to operate efficiently in high-pressure environments, protecting against differential pressure.
• Hazardous Environments: Certified for use in ATEX, CSA, and IECEx-approved zones.

FAQ

Q1: What certifications does this proximity probe have?
A: The 330104-00-07-90-12-05 is CSA, ATEX, and IECEx approved for use in hazardous environments.

Q2: What is the FluidLoc option?
A: The FluidLoc cable prevents oil and other liquids from leaking through the interior of the cable, enhancing performance in demanding conditions.

Q3: Can this probe handle extreme temperatures?
A: Yes, the probe offers a wide temperature range, from -52°C to +218°C (-62°F to +425°F) for specific models.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
