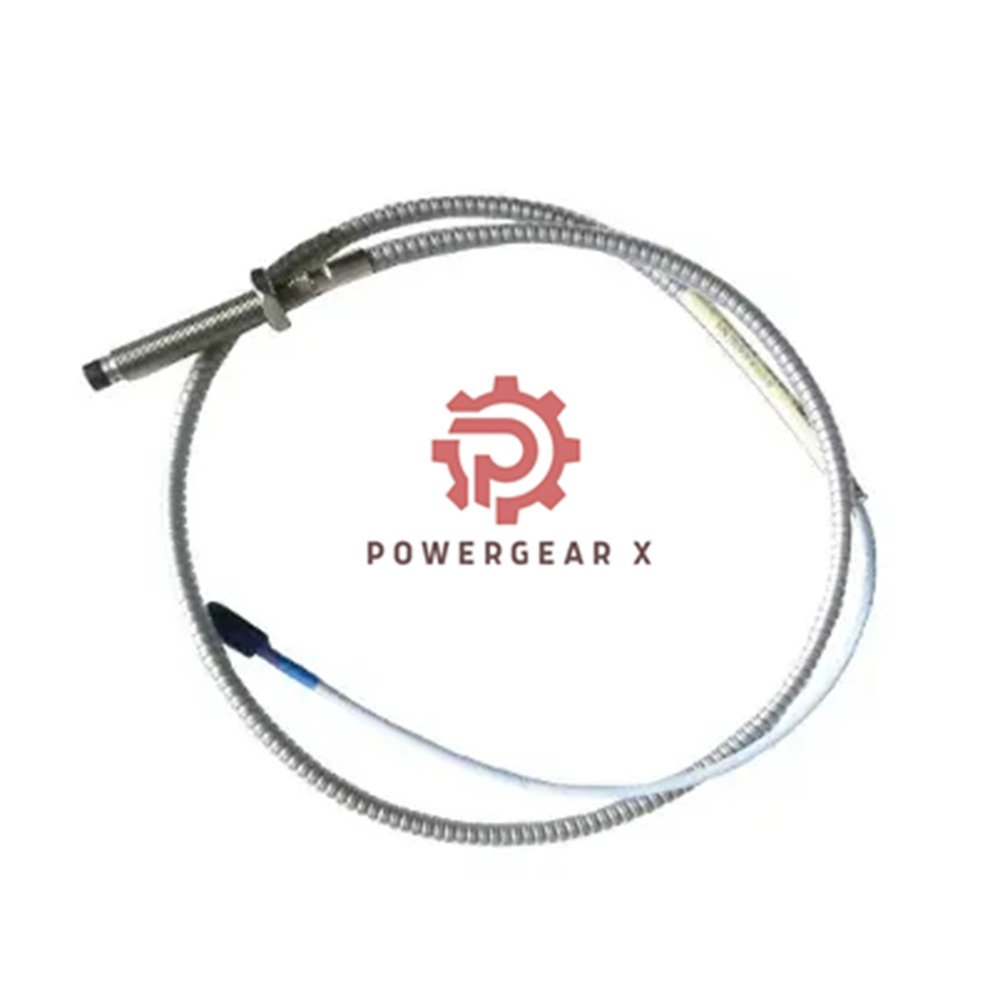

330104-00-10-10-01-00 8 mm Proximity Probe Bently Nevada

Overview

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330104-00-10-10-01-00) is engineered for accurate non-contact displacement and position measurement in industrial applications. Manufactured in the USA, this probe features advanced design enhancements, including patented TipLoc and CableLoc technologies, ensuring durability and reliability under demanding conditions.

Technical Specifications

The following specifications pertain to the Bently Nevada 3300 XL 8 mm Proximity Probe:

General

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• 330104-00-10-10-01-00 Suffix Explanation:
  • 00: Unthreaded length of 0 mm
  • 10: Overall case length of 100 mm
  • 10: Total cable length of 1.0 meter (3.3 feet)
  • 01: Miniature coaxial ClickLoc connector with protector, standard cable
  • 00: No agency approval required

Construction

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Weight: 0.323 kg

Operating Conditions

• Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Probe:
    • Probe tip: -52°C to +218°C (-62°F to +425°F)
    • Cable and connector: -51°C to +260°C (-60°F to +500°F)
• Relative Humidity: <3% change in ASF after testing in 93% humidity as per IEC 68 2 3

Electrical Characteristics

• Power Supply: -17.5 Vdc to -26 Vdc; 12 mA max
• Output Resistance: 50 Ω
• Supply Sensitivity: <2 mV change per volt input change

Pressure Seal

• The probe is equipped with a Viton® O-ring seal, designed to handle differential pressure. Contact Bently Nevada for custom pressure seal testing.

Frequently Asked Questions (FAQ)

• Q1. What is the primary use of the 3300 XL 8 mm Proximity Probe?
  The probe is used to measure non-contact displacement and position in various industrial applications.
• Q2. What does the ClickLoc connector offer?
  The ClickLoc connector provides a secure attachment, ensuring reliable connections even in harsh environments.
• Q3. Is the probe suitable for high-temperature environments?
  Yes, extended temperature variants operate up to +218°C for the probe tip and +260°C for the cable and connector.
• Q4. Does the probe include a pressure-tested seal?
  No, the probes are not pressure-tested before shipment. However, custom testing can be arranged.
• Q5. What industries benefit from this probe?
  Industries such as power generation, oil and gas, and manufacturing utilize this probe for machinery monitoring.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
