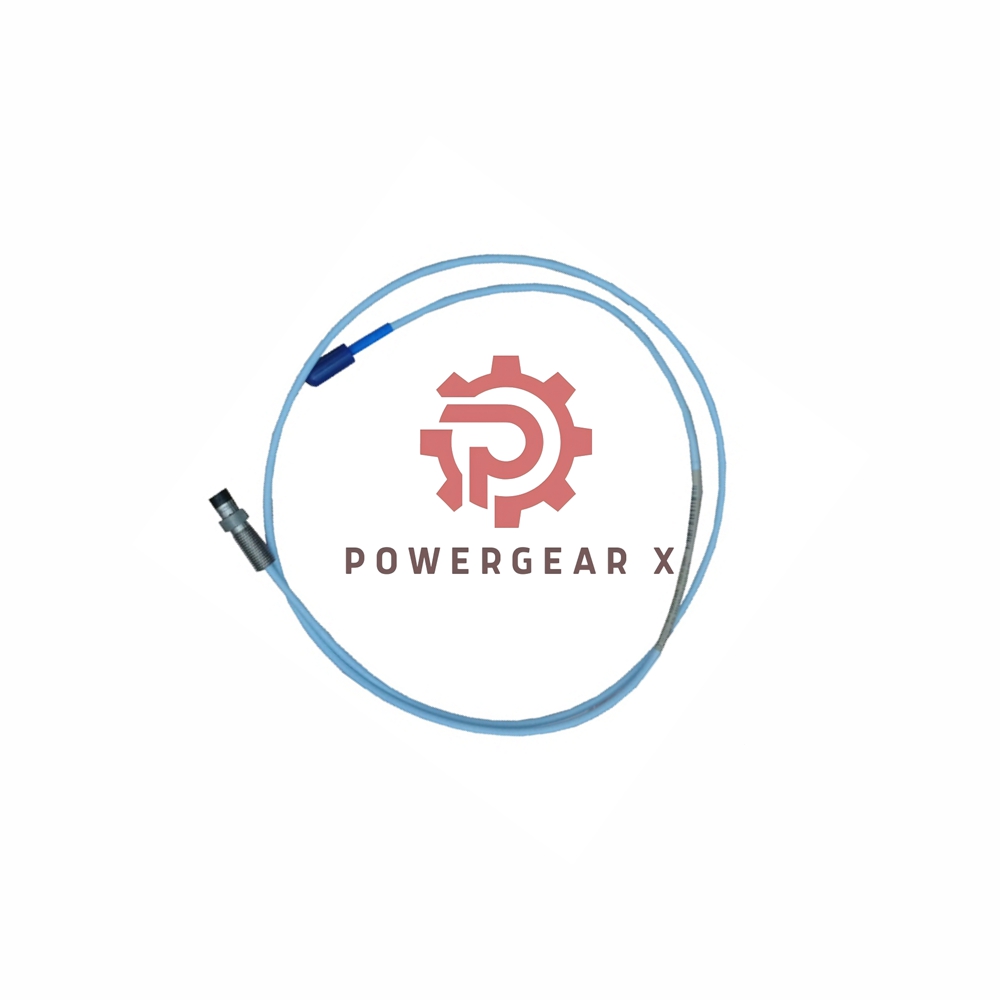

330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probe

Overview:

The Bently Nevada 330105-02-12-10-12-CN 3300 XL 8 mm Reverse Mount Probes are engineered for superior reliability and performance. They feature patented designs that enhance durability and prevent liquid leakage, making them ideal for critical industrial applications.

Technical Specifications:

• Manufacturer: Bently Nevada
• Product Number: 330105-02-12-10-12-CN
• Product Type: 3300 XL 8 mm Reverse Mount Probes
• Brand: Bently Nevada
• Made in: U.S.A
• Total Length Option: 10 = 1.0 metre (3.3 feet)
• Connector Option: 12 = Miniature ClickLoc coaxial connector, FluidLoc cable
• Agency Approval Option: CN = Country-specific approvals (CN Approvals Option Quick Reference Guide and Field Notification Letter available)
• Weight: 0.323 Kg

Material Specifications:

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Sealing Material: Viton® O-ring

Environmental and Operating Conditions:

• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range Probe:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)
• Altitude: Maximum 2000 meters

Nominal Probe DC Resistance:

• Resistance (RPROBE) from Center to Outer Conductor:
  • Probe Length: 1.0 metre
  • Resistance: 7.59 ± 0.50 Ω

Torque and Pressure Ratings:

• Maximum Thread Engagement Length: 3/8-24 0.563 inches
• Probe Case Torque:
  • Reverse-mount probes maximum torque: 22.6 N•m (200 in•lbf)
  • Recommended torque: 7.5 N•m (66 in•lbf)

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
