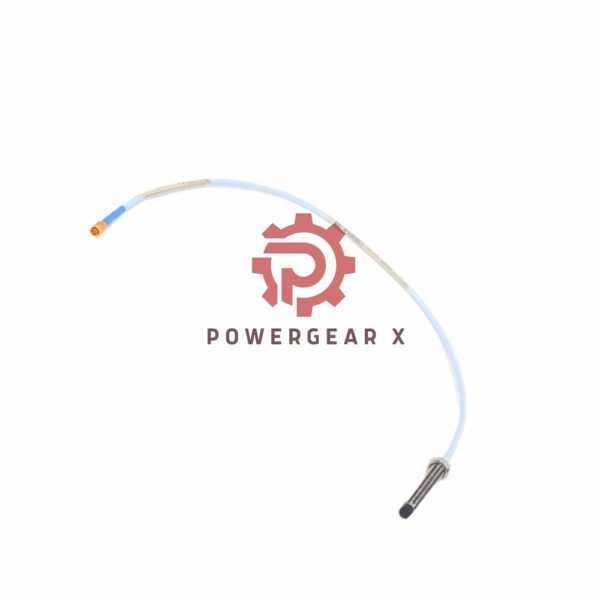

330105-02-12-20-02-00 Bently Nevada Reverse Mount Probe

Overview

The Bently Nevada 330105-02-12-20-02-00 3300 XL 8 mm Proximity Transducer System delivers industry-leading performance, ensuring reliable and precise measurements in vibration monitoring and machinery protection. Enhanced features like the patented TipLoc and CableLoc designs provide durability and robustness for demanding industrial environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330105-02-12-20-02-00
• Thread Type: 3/8-24 UNF threads (330105-02-12)
• Connector Options:
  • Cable Length: 20 (2.0 meters / 6.6 feet)
  • Connector Type: 02 (Miniature Click-Loc coaxial connector)
• Agency Approval: 00 (Not required)
• Weight: 0.246 kg (Probe); 0.323 kg (Entire system)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Operating Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Probe: -52°C to +218°C (-62°F to +425°F) for the probe tip, -51°C to +260°C (-60°F to +500°F) for the cable and connector
• Maximum Thread Engagement Length: 0.563 inches
• Nominal Probe DC Resistance:
  • 2.0m Length:7.88 ± 0.50 Ω
• Torque Ratings:
  • Maximum Torque: 22.6 N•m (200 in•lbf)
  • Recommended Torque: 7.5 N•m (66 in•lbf)
• Sealing Mechanism: Viton® O-ring for differential pressure sealing (not pressure-tested before shipment)

FAQ

1. What does the “330105-02-12” indicate?
   It refers to the thread type, which is 3/8-24 UNF, ensuring compatibility with specific installations.
2. Can the probe operate at extreme temperatures?
   Yes, the extended temperature range probe operates up to +218°C for the tip and +260°C for the cable and connector.
3. What is the purpose of the Viton® O-ring?
   It seals differential pressure between the probe tip and case, enhancing reliability.
4. Is the system compatible with other materials besides AISI 4140 steel?
   Performance specifications are optimized for AISI 4140 steel targets, but it may be calibrated for other materials.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
