330106-05-30-05-12-05 Bently Nevada | Reverse Mount Probes

Overview

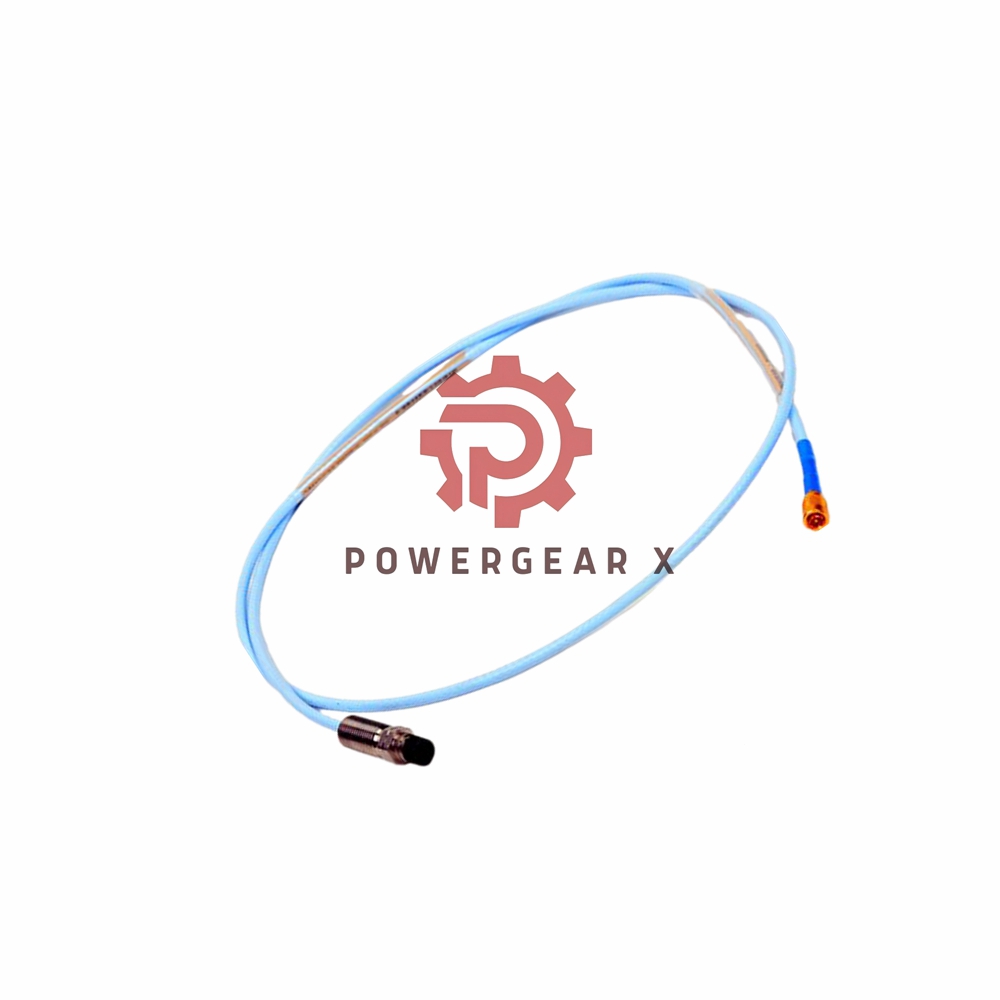

The Bently Nevada 330106-05-30-05-12-05 Reverse Mount Probe is a robust, high-performance sensor designed to provide accurate vibration measurements in industrial applications. Made in the USA, these probes feature a miniature ClickLoc coaxial connector, FluidLoc cable option, and are equipped with several agency approvals, including CSA, ATEX, and IECEx certifications.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330106-05-30-05-12-05
• Product Type: Reverse Mount Probe
• Made in: U.S.A.

Thread and Connector Options:

• Thread Type: M10 x 1
• Connector: Miniature ClickLoc coaxial
• Cable: FluidLoc (Option 12), although not required in most installations due to the probe sleeve.

Agency Approval:

• CSA, ATEX, IECEx

Physical Dimensions:

• Length: 20.4 cm
• Width: 22.2 cm
• Height: 3.7 cm
• Weight: 0.23 kg

Resistance:

• Nominal Probe DC Resistance: 7.45 ± 0.50 Ohms (from Center Conductor to Outer Conductor)

Mechanical Properties:

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Maximum Rated Torque: 22.6 N•m (200 in•lbf)
• Recommended Torque: 7.5 N•m (66 in•lbf)

Thread and Pressure Specifications:

• Maximum Length of Thread Engagement: 15 mm
• Operating Pressure: Sealed with Viton® O-ring to prevent differential pressure between the probe tip and case

Temperature Range:

• Standard Operating Range: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)

Important Notes:

• Exposure to temperatures below -34°C (-30°F) may cause premature seal failure.
• FluidLoc cable option is recommended only in specific applications—please consult before ordering.

FAQ:

1. What is the length of the Bently Nevada 330106 Reverse Mount Probe?
   The standard length for this probe is 0.5 meters (1.6 feet), but custom lengths are available.
2. What is the maximum torque rating for this probe?
   The maximum rated torque for installation is 22.6 N•m (200 in•lbf), with a recommended torque of 7.5 N•m (66 in•lbf).
3. Is the FluidLoc cable necessary for installation?
   The FluidLoc cable is not necessary for most installations due to the presence of the probe sleeve. It should be considered carefully based on specific application needs.
4. What approvals does the Bently Nevada 330106 probe have?
   This probe has CSA, ATEX, and IECEx agency approvals.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
