Overview

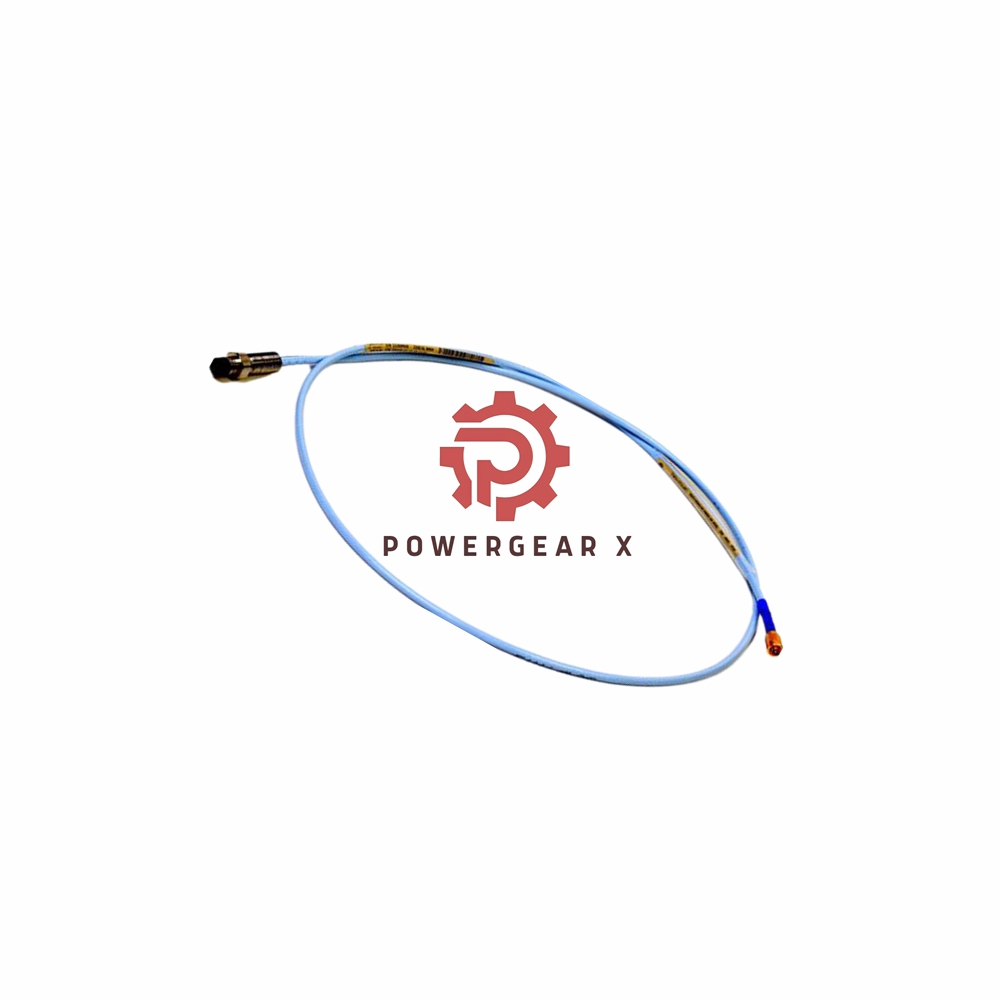

The Bently Nevada 330106-05-30-15-02-00 Reverse Mount Probe is a high-performance product designed for industrial applications where precision and durability are required. Manufactured in the U.S.A., this probe is engineered to operate in demanding environments, offering high resistance and reliable performance. The probe can also come with a Certificate of Origin (COO) for your specific requirements.

Technical Specifications

• Brand: Bently Nevada
• Model: 330106-05-30-15-02-00
• Type: Reverse Mount Probe
• Material:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 303 or 304 stainless steel (SST)
• Nominal DC Resistance:
  • Resistance (RPROBE): 1.5 7.73 ± 0.50
• Connector Option: 02 Miniature ClickLoc coaxial connector
• Agency Approval Option: 00 Not required
• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.323 Kg
• Maximum Thread Engagement: 15 mm (M10 x 1)
• Maximum Rated Torque: 22.6 N•m (200 in•lbf)
• Recommended Torque: 7.5 N•m (66 in•lbf)
• Temperature Range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended: -52°C to +218°C (-62°F to +425°F) for probe tip; -51°C to +260°C (-60°F to +500°F) for probe cable and connector.
• Pressure Seal: Viton® O ring used for differential pressure sealing

Application Scenarios

• Industrial Monitoring: Used for vibration and displacement measurements in industrial machinery.
• Environmental Flexibility: Suited for applications where extreme temperature fluctuations are present.
• Heavy-Duty Equipment: Ideal for large machinery requiring reliable, durable sensing.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
