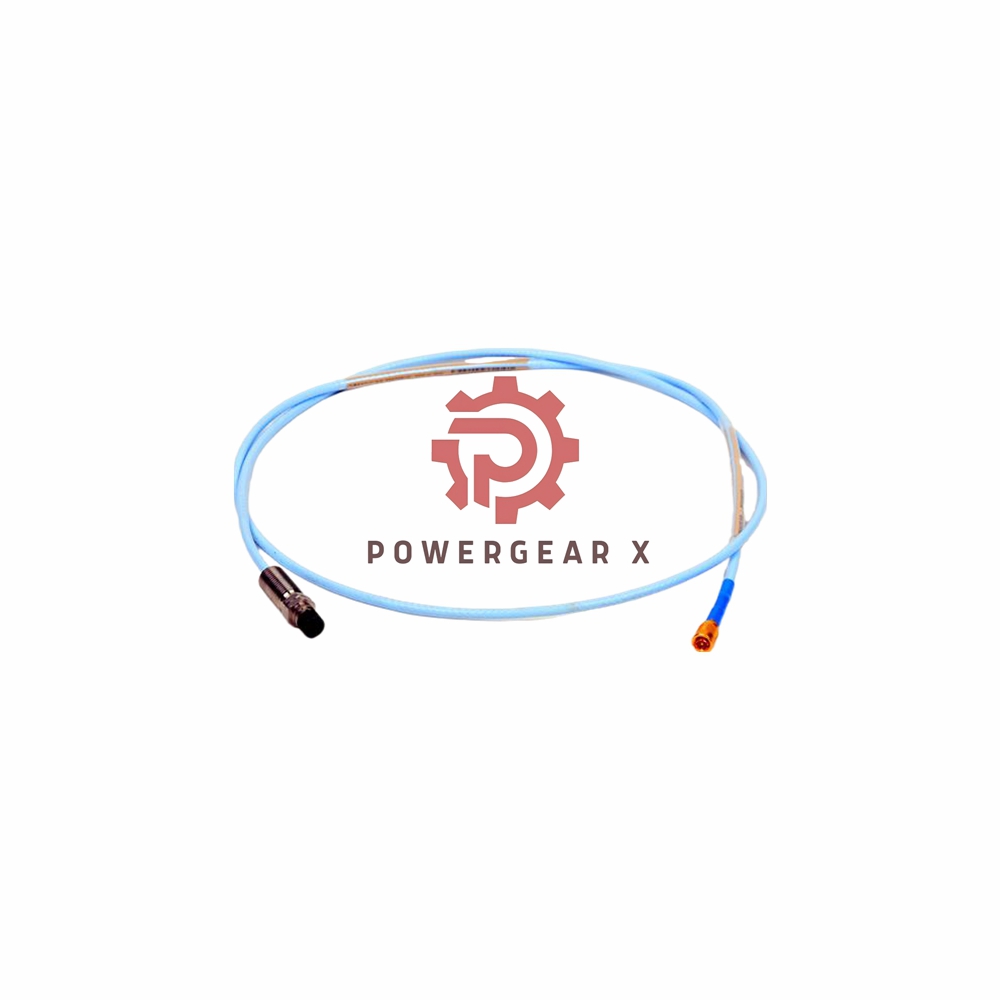

330106-05-30-50-02-00 Bently Nevada Reverse Mount Probe

Technical Specifications for 330106-05-30-50-02-00

• Brand/Manufacturer: Bently Nevada
• Model: 330106-05-30-50-02-00
• Thread Type: M10 x 1
• Power Requirements: Operates at -17.5 Vdc to -26 Vdc; consumes up to 12 mA.
• Output Resistance: 50 Ω
• Tip Material: PPS (Polyphenylene Sulfide)
• Case Material: AISI 303/304 SST
• Connector: Miniature ClickLoc (02)
• Sealing Material: Viton® O-ring for differential pressure sealing.
• Recommended Torque: 11.2 N•m (100 in•lbf) for forward-mounted probes.

Suffix Details:

• “330106-05-30” indicates the thread type (M10 x 1).
• “50” represents a total cable length of 5.0 meters (16.4 feet).
• “02-00” specifies the miniature ClickLoc connector and no required agency approvals.

FAQ

Q: What makes the 8 mm probe more robust compared to other sizes?
A: The 8 mm probe features thicker encapsulation of the coil in molded PPS plastic, enhancing durability and resistance to physical abuse. The larger case diameter also provides additional strength.

Q: What is the power requirement for this probe?
A: The probe operates at -17.5 Vdc to -26 Vdc and consumes a maximum of 12 mA.

Q: Is this probe suitable for hazardous environments?
A: Yes, it is compatible with non-incendive circuits as per installation drawing 140979, making it suitable for use in hazardous locations.

Q: What type of connector is used?
A: The probe features a Miniature ClickLoc coaxial connector for secure and reliable connections.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
