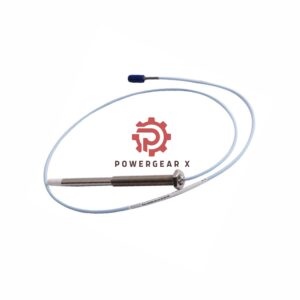

330106-05-30-90-02-CN Bently Nevada M10 Mount Probes

Overview

The Bently Nevada 330106-05-30-90-02-CN reverse mount probe is a high-performance sensor designed for industrial applications requiring precise monitoring. Manufactured in the USA, this probe excels in high-temperature and high-pressure environments, making it an ideal choice for demanding conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 330106-05-30-90-02-CN
  • Suffix Meaning:
    • 330106-05-30: M10 x 1 threads
    • 90: Total length option of 90 cm (or 29.5 feet).
    • 02: Specifies miniature ClickLoc coaxial connector.
    • CN: Indicates country-specific agency approval.
• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.323 kg
• Nominal DC Resistance: 9.87 ± 0.50 Ω regarding the center to outer conductor.
• Pressure Seal: Viton® O-ring is used for sealing between the probe tip and case.
• Threads: M10 x 1, with a maximum thread engagement length of 15 mm.

Temperature Range

• Standard Operating Temperature: -52°C to +177°C (-62°F to +350°F).
• Extended Operating Temperature:
  • For probe tip: -52°C to +218°C (-62°F to +425°F).
  • For probe cable and connector: -51°C to +260°C (-60°F to +500°F).

Frequently Asked Questions

1. What is the operating temperature range for this probe?
   • The standard probe operates between -52°C and +177°C, while the extended probe operates up to +218°C for the probe tip.
2. What type of connector does this probe use?
   • It features a miniature ClickLoc coaxial connector, ensuring secure and easy connections.
3. What does the model suffix indicate?
   • The suffix details specific configurations for the probe model, including the connector type and approval standards.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
