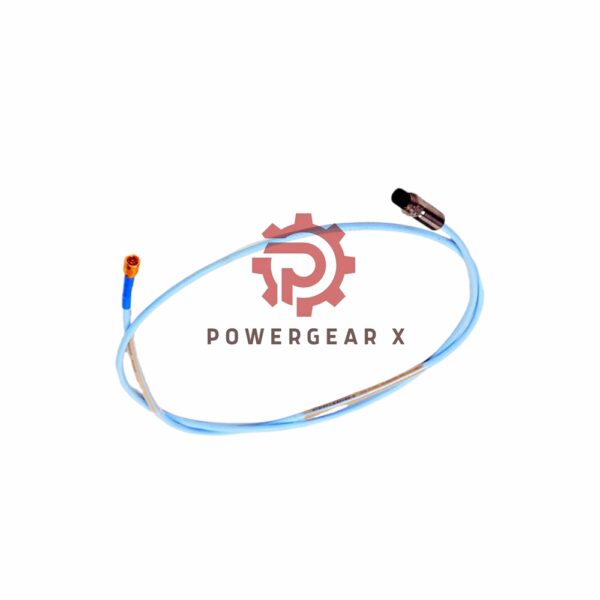

330106-05-30-90-12-CN Bently Nevada | Reverse Mount Probes

Overview

The Bently Nevada 330106-05-30-90-12-CN reverse mount probe delivers precision measurement capabilities for industrial monitoring systems. Engineered with robust materials and extended temperature tolerance, this probe ensures reliability in demanding environments. Its compact design integrates a FluidLoc cable and miniature connector for seamless installation.

Technical Specifications

• Brand: Bently Nevada
• Model: 330106-05-30-90-12-CN
  • Suffix Breakdown:
    • -90: 9.0-meter cable length (29.5 feet)
    • -12: Miniature ClickLoc coaxial connector with FluidLoc cable
    • -CN: Country-specific agency approval
• Dimensions: 20.4 cm × 22.2 cm × 3.7 cm
• Weight: 0.323 kg
• Electrical:
  • Nominal DC Resistance: 9.87 Ω ± 0.50 (center to outer conductor)
• Mechanical:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Case Material: AISI 303/304 stainless steel
  • Torque: Rated 22.6 N•m (200 in•lbf); Recommended 7.5 N•m (66 in•lbf)
• Temperature Range:
  • Standard: -52°C to +177°C
  • Extended: Up to +260°C for cable/connector
• Pressure Seal: Viton® O-ring (untested pre-shipment).

Application Scenarios

• Industrial machinery vibration monitoring
• High-temperature environments (e.g., turbines, compressors)
• Systems requiring reverse-mount sensor configurations

Common Questions

1. Is the FluidLoc cable mandatory?
   No—most installations with probe sleeves omit this option.
2. What causes premature seal failure?
   Exposure to temperatures below -34°C (-30°F).
3. Thread engagement limit?
   M10x1 threads support up to 15 mm engagement.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
