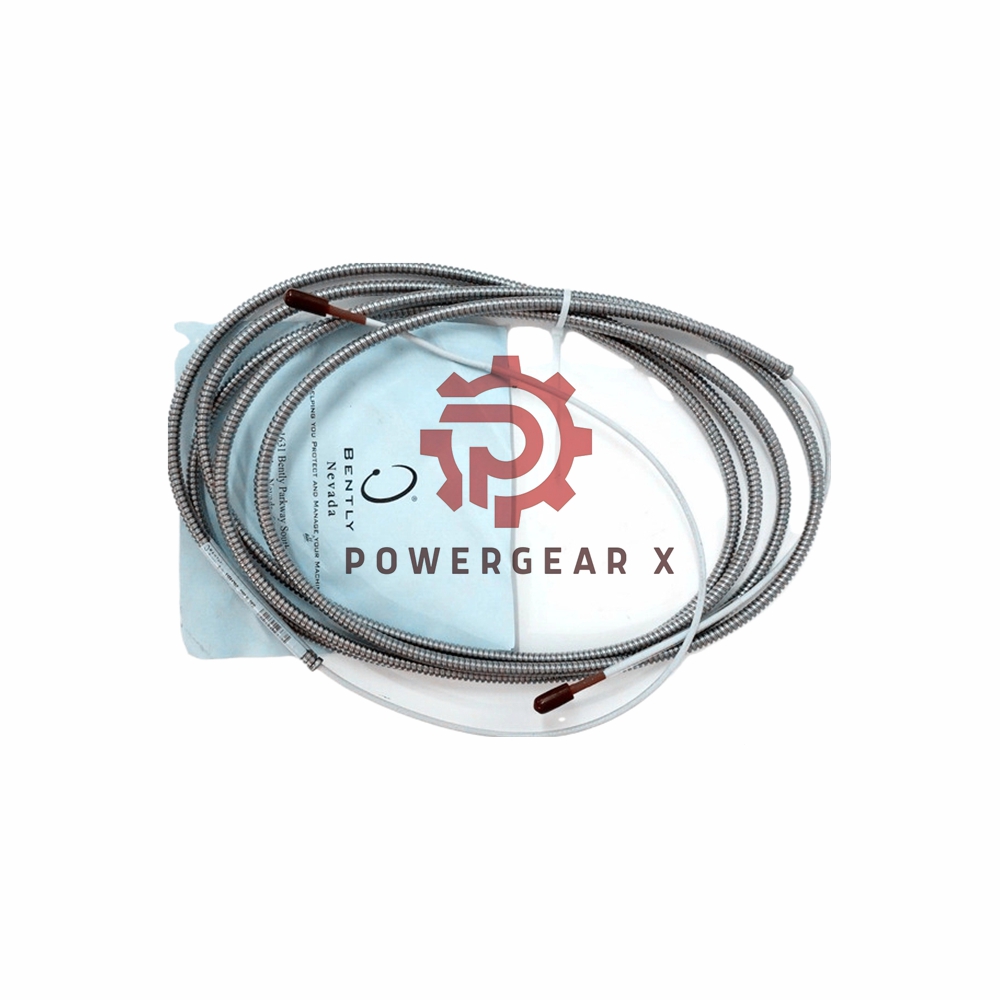

330130-030-11-05 Armored FluidLoc Cable | Bently Nevada

Overview:

Bently Nevada’s 330130-030-11-05 3300 XL Extension Cable offers robust reliability and enhanced performance for proximity measurement applications. The patented TipLoc and CableLoc technologies ensure superior durability, while optional FluidLoc prevents leaks through the cable. Suitable for various environments, this product meets rigorous industry standards such as CSA, ATEX, and IECEx approvals.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330130-030-11-05 (3300 XL Extension Cable)
• Suffix Meaning:
  • 030: Cable length in meters – 3.0 meters (9.8 feet)
  • 11: Armored FluidLoc cable
  • 05: Approvals for CSA, ATEX, IECEx

Electrical Specifications:

• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω
• Power Requirements: -17.5 Vdc to -26 Vdc, consuming up to 12 mA

Mechanical Properties:

• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.102 Kg
• Connector Type: Gold-plated brass or beryllium copper
• Material: A308 aluminum for Proximitor Sensor

Frequently Asked Questions (FAQ):

1. What does the FluidLoc option do?
   • It prevents oil and other liquids from leaking through the cable’s interior, ensuring a more secure setup in fluid-handling environments.
2. What approvals does this cable have?
   • The 3300 XL Extension Cable is certified by CSA, ATEX, and IECEx, making it suitable for use in hazardous environments.
3. How should I tighten the connectors?
   • The gold “click” type connectors should be finger-tightened. The non-XL stainless steel connector requires an additional 1/8 turn using pliers.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
