330130-035-01-05 3300 XL Armored Cable | Bently Nevada

Overview

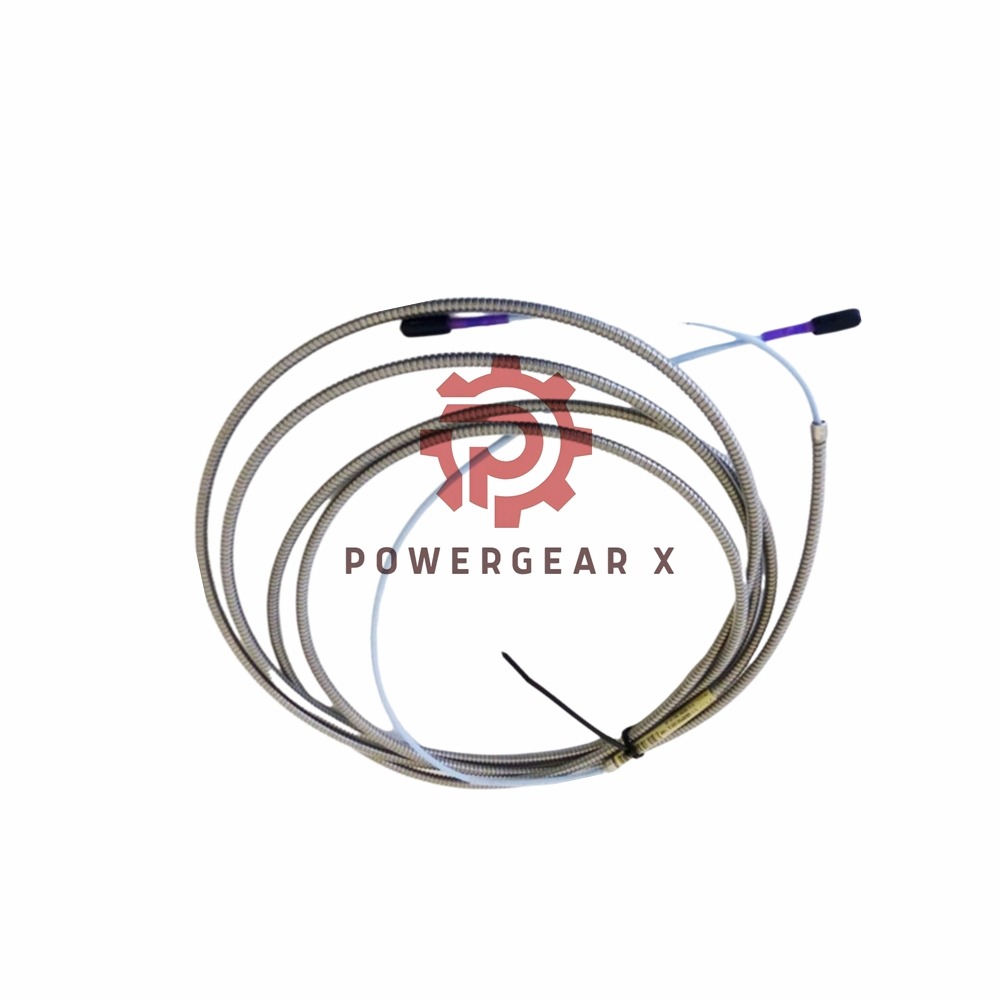

The 330130-035-01-05 3300 XL Extension Cable is a high-performance cable from Bently Nevada, designed to deliver reliable connectivity for industrial applications. It is made with advanced materials and patented technologies to ensure durability, signal integrity, and protection in demanding environments.

This cable is commonly used in conjunction with 3300 XL Proximitor Sensors and 8 mm probes, offering enhanced mechanical robustness and electrical performance.

Key Specifications

• Manufacturer: Bently Nevada
• Product Number: 330130-035-01-05
• Product Type: 3300 XL Extension Cable
• Country of Origin: Made in the U.S.A.

• Model Suffix Meaning

  • 330130: 3300 XL Standard Extension Cable
  • 035: Cable length (3.5 meters)
  • 01: Armored cable option
  • 05: Approvals (CSA, ATEX, IECEx)
• Weight: 0.36 Kg
• Operating & Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Electrical Characteristics

• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Power Supply Requirements: -17.5 Vdc to -26 Vdc
• Output Resistance: 50 Ω
• Linear Range: 2 mm (80 mils)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Supply Sensitivity: Less than 2 mV change per volt variation

Connector Types & Tightening Instructions

• Two 3300 XL gold connectors: Finger tight
• One stainless steel connector: Finger tight plus 1/8 turn using pliers

Patented Technologies

• TipLoc Molding: Ensures a stronger bond between the probe tip and probe body.
• CableLoc Design: Provides a pull strength of 330 N (75 lbf), preventing disconnections.
• FluidLoc Option: Prevents leakage of oil and other liquids through the cable interior.

FAQ – Frequently Asked Questions

1. What is the length of this cable?
   • The cable length is 3.5 meters (13.1 feet).
2. What is the significance of the FluidLoc option?
   • The FluidLoc option prevents liquids from leaking through the cable.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
