330130-035-02-00 Standard Extension Cable | Bently Nevada

Overview

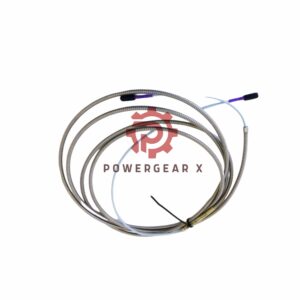

The 330130-035-02-00 3300 XL extension cable from Bently Nevada ensures robust performance and long-lasting durability in industrial environments. Designed to connect the 3300 XL Proximitor Sensor with the probe, this cable is built with advanced technology such as TipLoc and CableLoc for improved reliability.

This cable includes:

• Patented TipLoc molding for enhanced bond strength.
• CableLoc design to provide a secure 330 N (75 lbf) pull strength.
• Optional FluidLoc feature to prevent oil leakage.

The product is suitable for applications requiring high performance across a wide temperature range, with flexible field wiring options for extended reach.

Product Information

• Manufacturer: Bently Nevada
• Product No.: 330130-035-02-00
• Product Type: 3300 XL Extension Cable
• Country of Origin (COO): Made in the U.S.A

• Model and Suffix Code Breakdown

  Option Code	Description
  330130	3300 XL Extension Cable
  035	3.5 meters (13.1 feet)
  02	Standard cable with connector
  00	Agency approval not required

Key Technical Specifications

• Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F) for standard cable
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Weight: 0.119 kg (34 g/m (0.4 oz/ft) )
• Linear Range: 2 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the target
• Connector Types:
  • Two 3300 XL gold “click” connectors (finger tight)
  • One non-XL stainless steel connector and one 3300 XL connector (finger tight plus 1/8 turn using pliers)

Power Requirements

• Requires -17.5 Vdc to -26 Vdc with non-incendive circuit connected per installation drawing 140979
• Maximum consumption of 12 mA
• Voltage range between -23 Vdc to -26 Vdc when barriers are used
• Supply sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Field Wiring

• Supported Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Recommended Cable: 3-conductor shielded triad cable with tinned field wiring
• Maximum Length: Up to 305 meters (1,000 feet) between the Proximitor Sensor and the monitor
• Output Resistance: 50 Ω

FAQs

• Q: What is the purpose of the FluidLoc option?
  A: The FluidLoc option is designed to prevent oil and other liquids from leaking through the cable interior, protecting the connected components.
• Q: Can the 3300 XL extension cable be used in high-temperature environments?
  A: Yes, the standard cable can operate between -51°C and +177°C (-60°F to +351°F).
• Q: How secure is the connection between the cable and the probe?
  A: The patented CableLoc design provides a pull strength of 330 N (75 lbf), ensuring a secure attachment.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
