Overview

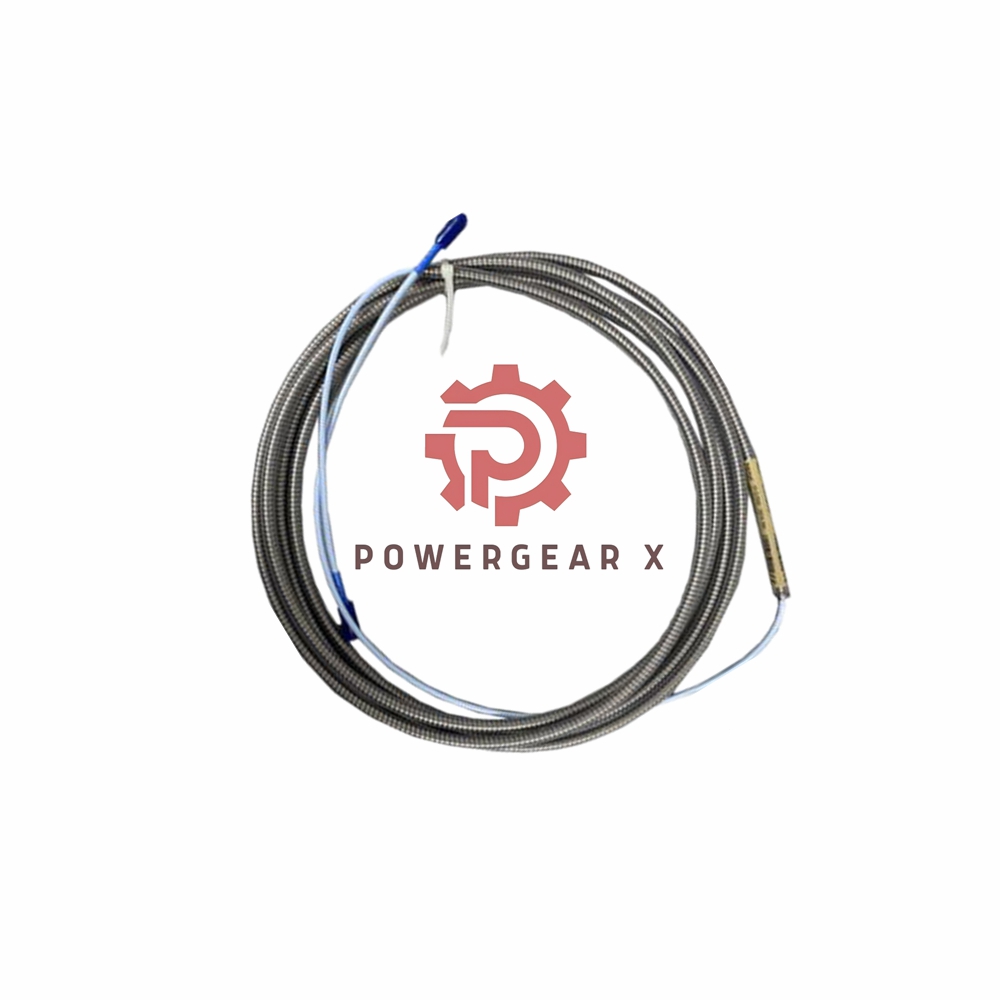

The Bently Nevada 330130-035-03-00 3300 XL Extension Cable is a reliable and high-performance solution designed for industrial applications. It offers enhanced durability and improved performance over previous designs, making it ideal for demanding environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-035-03-00
• Product Type: 3300 XL Extension Cable
• Country of Origin: Made in U.S.A

Cable Length Options

• 035: 3.5 meters (13.1 feet)

Connector and Cable Options

• 03: Armored cable with connector protector

Agency Approval Options

• 00: Not required

Extension Cable Capacitance

• Typical Value: 69.9 pF/m (21.3 pF/ft)

Operating and Storage Temperature

• Standard Cable: -51 °C to +177 °C (-60 °F to +351 °F)

Weight

• Armored Extension Cable: 103 g/m (1.5 oz/ft)
• Total Weight: 0.36 Kg

Connector Types and Tightening Instructions

• Two 3300 XL Gold Connectors: Finger tight
• One Non-XL Stainless Steel Connector & One 3300 XL Connector: Finger tight plus 1/8 turn using pliers

Materials

• Connector Material: Gold-plated brass or gold-plated beryllium copper

Performance Improvements

The 3300 XL probe and extension cable reflect significant improvements over previous designs. The patented TipLoc molding method enhances the bond between the probe tip and the probe body, while the CableLoc design ensures a pull strength of 330 N (75 lbf) for secure attachment. Optional FluidLoc cable prevents fluid leaks through the cable’s interior.

Power Requirements

• Voltage: Requires -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω

Field Wiring and Linear Range

• Field Wiring: Supports 0.2 to 1.5 mm² (16 to 24 AWG) wires
• Maximum Wiring Length: 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor
• Linear Range: 2 mm (80 mils), beginning from approximately 0.25 mm (10 mils) from the target and extending to 2.3 mm (90 mils)

Connector Material Details

The connectors are made from high-quality gold-plated brass or gold-plated beryllium copper, ensuring durability and reliability in harsh industrial environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
