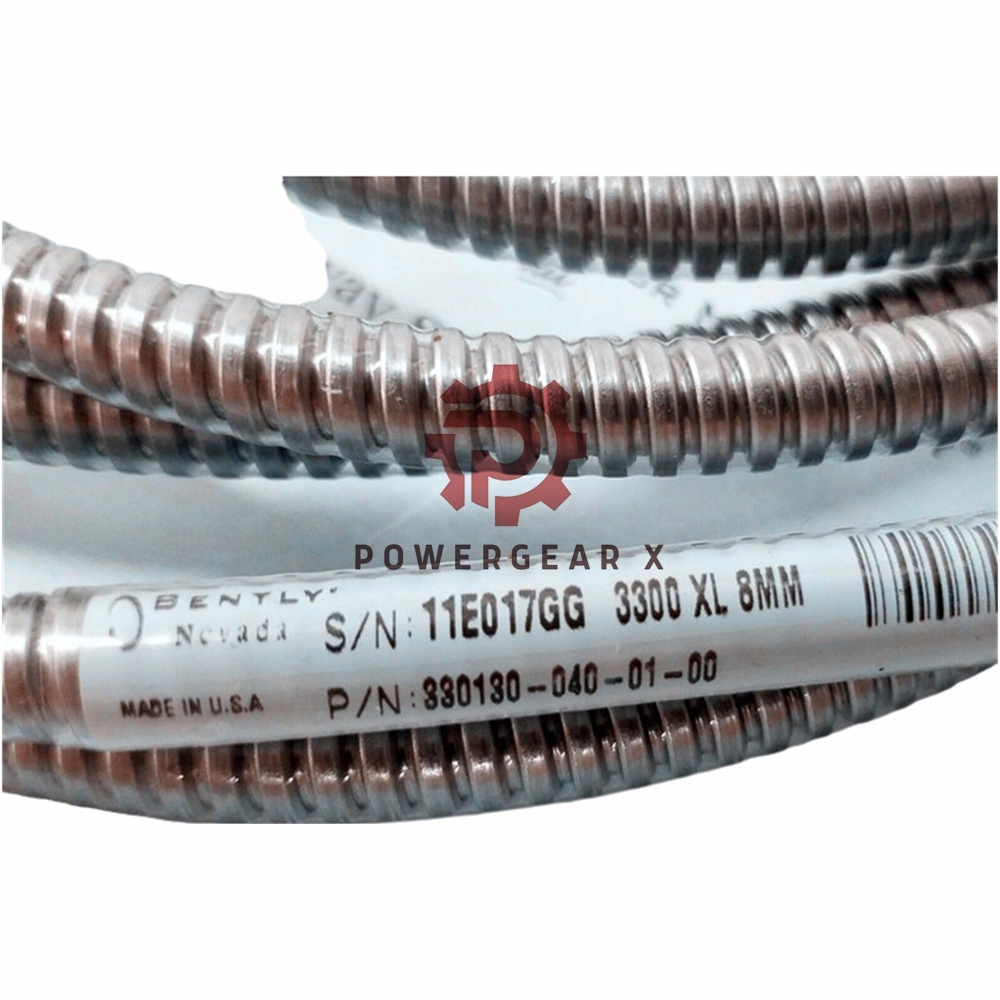

330130-040-01-00 Bently Nevada | 3300 XL Extension Cable

Overview

The Bently Nevada 330130-040-01-00 is a 3300 XL Extension Cable designed for advanced proximity measurement systems. It enhances performance with its 75 Ω triaxial FEP-insulated cable, offering excellent durability and reliability. Equipped with the Armored Cable Option (01) and built-in TipLoc and CableLoc technologies, the product ensures robust performance in demanding industrial environments. Optional FluidLoc technology prevents fluid ingress, making it ideal for oil and gas applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-040-01-00
• Suffix Significance:
  • 040: Cable length of 4.0 meters (13.1 feet)
  • 01: Armored cable
  • 00: No agency approval required

Electrical

• Power Supply: Requires -17.5 Vdc to -26 Vdc with a maximum consumption of 12 mA.
• Output Resistance: 50 Ω
• Supply Sensitivity: <2 mV output voltage change per volt of input voltage change.
• Capacitance: 69.9 pF/m (21.3 pF/ft), typical.

Mechanical

• Material: 75 Ω triaxial cable, FEP-insulated for superior heat and chemical resistance.
• Linear Range: 2 mm (80 mils), starting at 0.25 mm (10 mils) from the target.

Environmental

• Operating/Storage Temperature: -51°C to +177°C (-60°F to +351°F).
• Weight: 0.45 kg.
• Maximum Altitude: Up to 2000 meters.

FAQ

1. What does the suffix “040” in the model signify?
The suffix “040” indicates a cable length of 4.0 meters (13.1 feet).

2. What is the purpose of the armored cable option?
The “01” suffix denotes the use of an armored cable for enhanced durability and protection in harsh environments.

3. Can the cable operate at extreme temperatures?
Yes, it supports a wide temperature range from -51°C to +177°C (-60°F to +351°F).

4. Is the FluidLoc option available for this model?
Yes, FluidLoc technology can be ordered separately to prevent liquid ingress through the cable.

5. How does the CableLoc technology enhance performance?
CableLoc provides 330 N (75 lbf) pull strength, ensuring the cable remains securely attached to the probe.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
