330130-040-03-05 Bently Nevada | 3300 XL Extension Cable

Overview

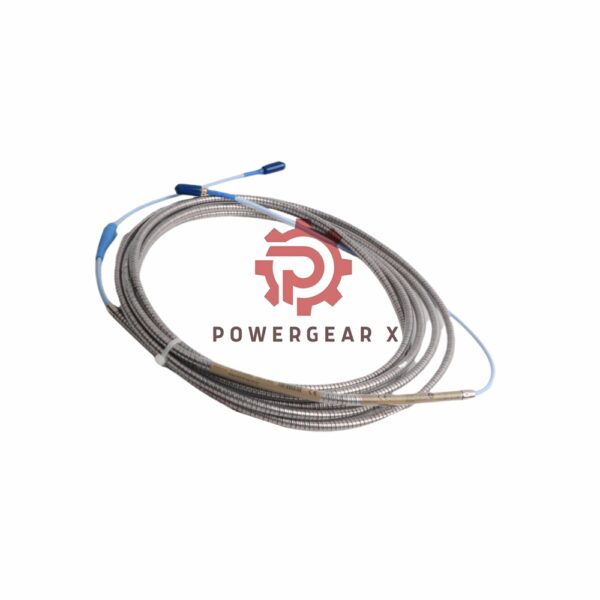

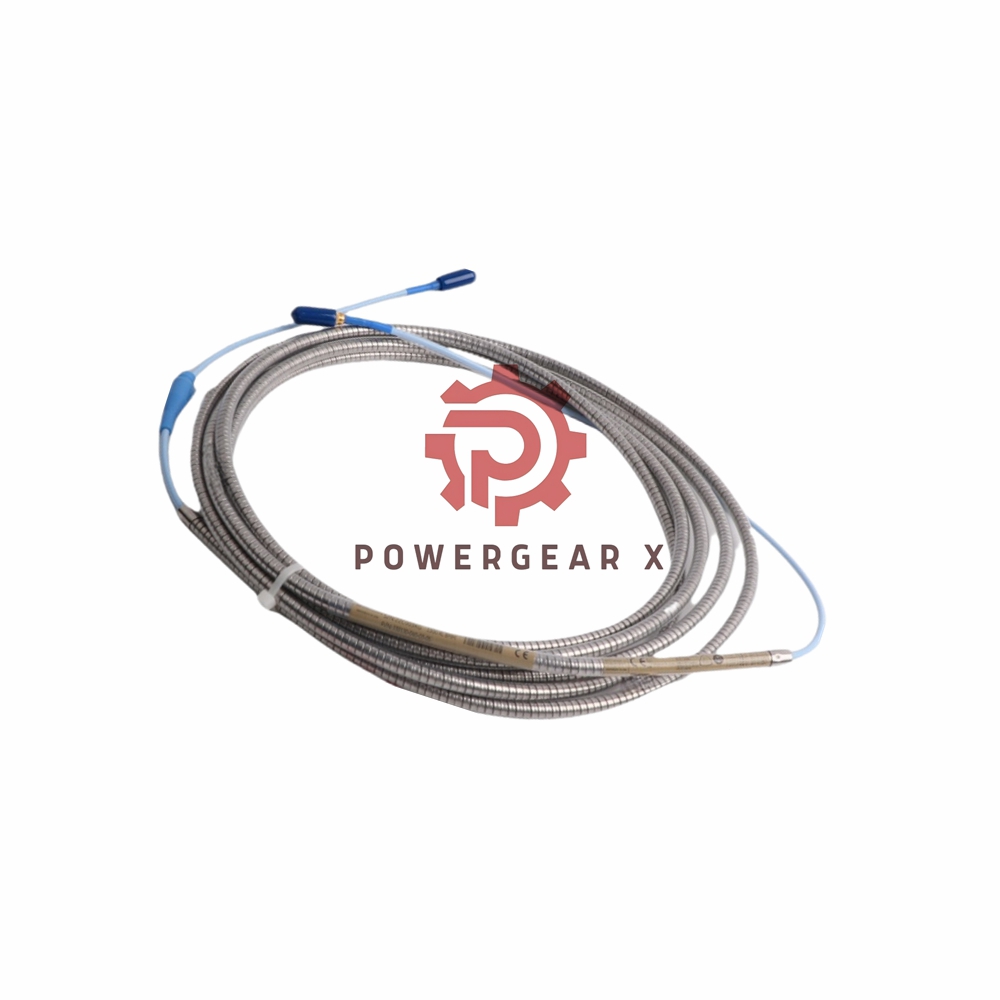

The 3300 XL Standard Extension Cable, Model: 330130-040-03-05, by Bently Nevada, is designed to extend the reach of 3300 XL probes, offering enhanced durability and reliable performance in demanding industrial environments. This cable features a robust construction, incorporating a patented TipLoc molding for secure probe tip attachment and a CableLoc design for added pull strength. Additionally, the cable comes with an optional FluidLoc feature to prevent liquids from leaking through, ensuring longevity and protection. Available in multiple lengths, the cable is ideal for applications requiring reliable sensor connections in harsh conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Standard Extension Cable
• Cable Length Option: 040 (4.0 meters / 13.1 feet)
• Connector Protector and Cable Option: 03 (Armored cable with connector protectors)
• Agency Approval Option: 05 (Multiple Approvals)
• Material: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.45 Kg
• Power Supply: -17.5 Vdc to -26 Vdc (with non-incendive circuit), -23 Vdc to -26 Vdc (with barriers)
• Sensitivity: <2 mV change per volt change in input voltage
• Output Resistance: 50 Ω
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), with a recommendation for 3-conductor shielded triad cable and tinned field wiring
• Linear Range: 2 mm (80 mils), from 0.25 mm (10 mils) to 2.3 mm (90 mils)
• Maximum Cable Length: 305 meters (1,000 feet)

FAQs

1. What is the maximum operating temperature of the 3300 XL extension cable?
   The 3300 XL extension cable can operate within a temperature range of -51 °C to +177 °C (-60 °F to +351 °F).
2. What is the maximum cable length for the 3300 XL extension cable?
   The maximum cable length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet).
3. What materials are used in the 3300 XL extension cable?
   The cable features 75Ω triaxial FEP insulation, ensuring durability and performance in various industrial environments.
4. Does the 3300 XL extension cable come with approvals?
   Yes, the model has multiple agency approvals, providing assurance of its quality and compliance with industry standards.
5. Can the 3300 XL extension cable prevent liquid leakage?
   Yes, the FluidLoc cable option helps to prevent oil and other liquids from leaking out of the machine, offering enhanced protection.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
