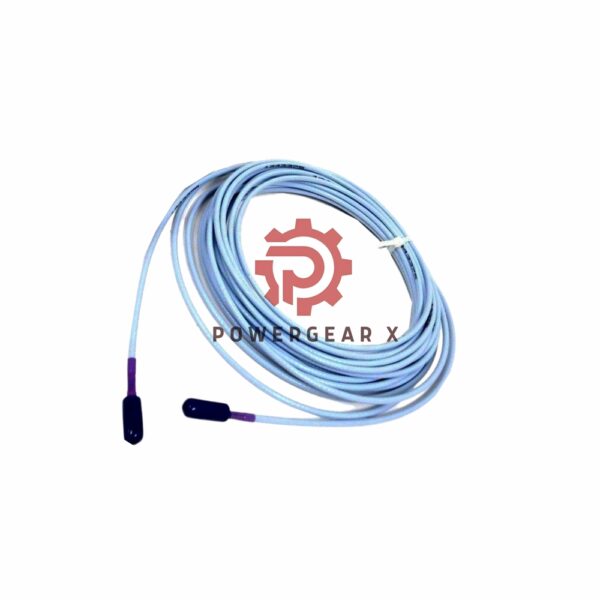

330130-045-00-CN 3300 XL Extension Cable Bently Nevada

Overview

The Bently Nevada 330130-045-00-CN is a 3300 XL extension cable, designed for use with the 3300 XL 8 mm proximity probes. It ensures secure and reliable connections for vibration monitoring systems in industrial environments. Manufactured in the U.S.A., the cable is engineered with advanced features, including patented TipLoc molding for enhanced durability and CableLoc design for secure attachment.

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 330130-045-00-CN
• Cable Length: 4.5 meters (14.8 feet)
• Cable Type: Standard cable
• Connector Protector and Cable Option: 00 (Standard cable)
• Agency Approval: CN (Approvals country-specific)
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Temperature Range: Operating and storage temperature from -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.503 kg
• Extension Cable Linear Range: 2 mm (80 mils), with linear range from 0.25 mm (10 mils) to 2.3 mm (90 mils)
• Operating Voltage: Requires -17.5 Vdc to -26 Vdc
• Sensitivity: Less than 2 mV change per volt change in input voltage
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), using 3-conductor shielded triad cable
• Maximum Wiring Length: 305 meters (1,000 feet)
• FluidLoc Option: Prevents leakage of oil or other liquids through the cable’s interior

FAQs

1. What is the maximum length for the extension cable?
   The maximum recommended length for the extension cable is 305 meters (1,000 feet).
2. Can I use this extension cable with probes other than 3300 XL models?
   This extension cable is specifically designed for use with 3300 XL 8 mm probes for optimal performance.
3. What is the recommended field wiring for this extension cable?
   We recommend using 3-conductor shielded triad cables with tinned field wiring for best results.
4. What is the fluid protection feature in the extension cable?
   The FluidLoc option in the extension cable prevents oil and other liquids from leaking through the cable’s interior, ensuring continued functionality in harsh environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
