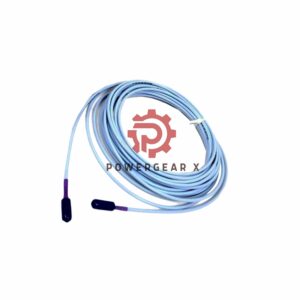

330130-045-02-05 3300 XL Extension Cable Bently Nevada

Overview

The Bently Nevada 330130-045-02-05 is a high-performance 3300 XL Standard Extension Cable designed to integrate seamlessly with 8 mm Proximity Sensor systems. It incorporates advanced design features such as TipLoc and CableLoc technologies to enhance durability and performance. This cable is widely recognized for its robust construction and reliability in demanding industrial environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-045-02-05
• Product Type: 3300 XL Standard Extension Cable
• Suffix Meaning:
  • 045: Cable length of 4.5 meters (14.8 feet)
  • 02: Standard cable with connector protectors
  • 05: Multiple agency approvals
• Capacitance: 69.9 pF/m (21.3 pF/ft), typical
• Operating and Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Weight: 0.503 kg
• Linear Range: 2 mm (80 mils), operational from 0.25 to 2.3 mm (10 to 90 mils)
• Power Requirements: -17.5 Vdc to -26 Vdc with 12 mA maximum consumption
• Output Resistance: 50 Ω
• Field Wiring: Compatible with 16 to 24 AWG, shielded triad cable recommended

FAQ

• 1. What is the purpose of the FluidLoc option?
  The FluidLoc option prevents oil or other liquids from leaking through the cable, providing added reliability in applications involving lubrication or harsh environments.
• 2. What does the “05” suffix signify?
  The “05” in the model number indicates multiple agency approvals, ensuring compliance with various industrial safety standards.
• 3. Is the cable suitable for high-temperature environments?
  Yes, the standard cable operates effectively in temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
